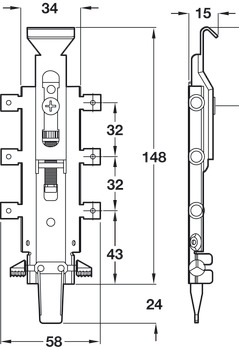

Spider Cabinet Hanger Conc Dowel UH SZP
Spider Cabinet Hanger Conc Dowel UH SZP
- Cabinet hanger concealed behind rear panel, only cover cap visible inside the cabinet
Area of application
- For hanging wall units
- 130 kg

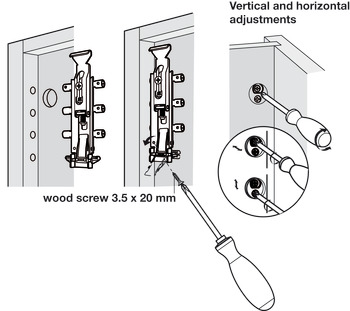

- Two-way adjustment:Vertical adjustment: 0-18 mm (Vertical adjustments through front gear cross socket interconnected to the vertical bolt, which reduces the cabinet adjustment effort)Horizontal adjustment: 11-17 mm
Order reference
- Wall plates and cover caps must be ordered separately
- Additional information attributes
- Cabinet hangers should only be adjusted with a hand tool and not a power tool
The Spider Cabinet Hanger Conc Dowel UH SZP (product code 290.36.910) is a Hafele engineered product built for dependable, precise performance in everyday use.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 290.36.910 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 290.36.910
- Pack Quantity
- 1 Each
12,786 In stock
£3.04
Ex. VAT: £2.53
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 3 | £3.04 | — |
| 4 – 19 | £2.88 | Save 5% |
| 20 – 39 | £2.72 | Save 10% |
| 40+ | £2.42 | Save 20% |
- Technical Specifications
| Load bearing capacity | per pair |
| Installation | reference |
