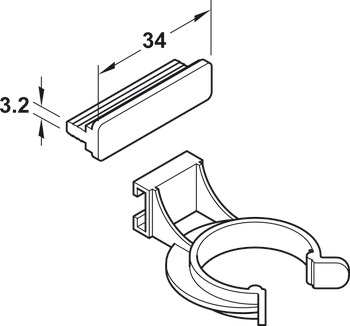

• The Häfele Axilo 78™ system is easy, convenient and efficient. Compromising 6 unique components - the top section, the shaft and foot section, the plinth panel clip, the plinth panel holder, the adjusting tool and finally the extension tool. The system is a specially designed plinth fitting and adjustment tool to enable perfect alignment of cabinetry. Not only saving you time but most importantly allowing you to work without awkward postures; no more bending, crawling or stretching required to get to the back of the cabinets. Using the 6 components, the arm which serves as an extension tool can be used from any angle to slot into the bottom of the specially designed foot section so it can be adjusted higher or lower as required. Please watch the video linked to the left for a demonstration.
• Suitable forPlastic or aluminum plinths

Order reference

• Please note: for the Axilo™ system you will need to order top section, foot and shaft section, plinth clip and the adjusting tool separatelyPlease order Ø 3.5 mm Hospa countersunk screws separately
• Additional information attributes

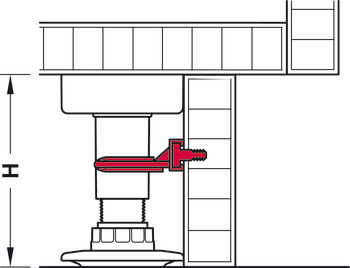

• For use from installation height 80 mmFor slide on fitting version we advise a trial installatin as may not suit all types of plinth panels
