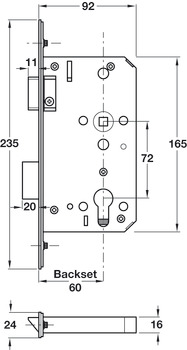

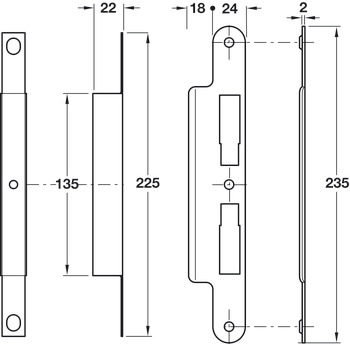

• Conforms to BS EN 12209Assessed for use on 30 minute (FD 30) and 60 minute (FD60) timber fire doors to BS EN 1634-1Latchbolt operated by lever handles. Deadbolt operated by cylinderCase: Galvanized, 16 mm wideForend: Radius, 2 pieceStrike plate: Radius. Box includedLatchbolt: Bright zinc plated. Easily reversibleDeadbolt: Bright zinc plated. 20 mm throwFollower: 8 mm. Hold-tite spindle spring. For use with unsprung furnitureHoled for bolt through furniture at 38 mm centresOnly requires a lever depression of approx. 25° to fully retract latchbolt
• For door material
• Wood
• Version
• Back lining for strike plate
• Prepared for
• Profile cylinder
• Forend length
• 235 mm
• Deadbolt version
• Standard deadbolt
• Classification in compliance with EN 12209
• 3|X|8|1|0|G|1|B|A|3|0
• Fire resistance category
• FD60
• Häfele Lifetime Guarantee
• 10 years

Order reference

• Order cylinder separately
• Warranty/guarantee information
• 1808
• Additional information attributes
• Where a fire rating is shown for a product this would only have been achieved by use of intumescent seals. When fitting any ironmongery to a door please ensure the correct intumescent product is used
