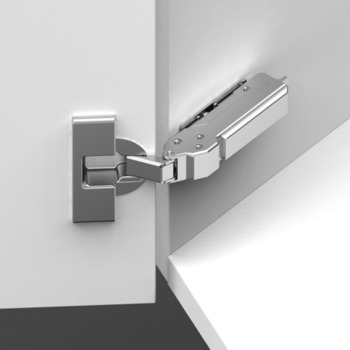

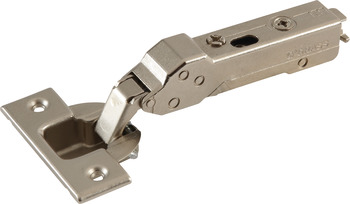

Tiomos 110/30D Hinge Clk FO SF wo SC - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Tiomos 110/30D Hinge Clk FO SF wo SC - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
- For 30° angle applicationsØ 35 mm cupWith integrated soft close
- Up to 24 mm (for door thicknesses 22 mm and above, a trial fitting is recommended)
- Area of applicationfor corner applications
- Versionsurface mounted
- Concealed hinge versionBlind corner application
- Crank typeCranked
- For door materialWood
- Door processing for assemblywith cup drilling
- Corner applications30°
- Cup drilling Ø35 mm
- Cup fixingfor screw fixing
- Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
Order reference
- Order mounting plate 348.38.511 and Hospa Ø 3.5 mm countersunk screws separately
- 1499
- Additional information attributes

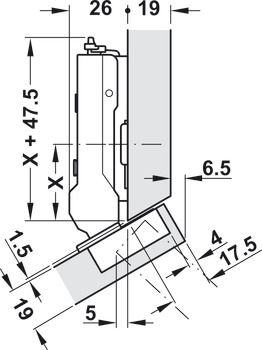

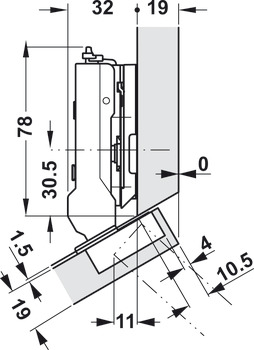

- Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 m
The Tiomos 110/30D Hinge Clk FO SF wo SC (product code 348.35.601) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Cup: Steel, Hinge arm: Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 348.35.601 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 348.35.601
- Material
- Cup: Steel, Hinge arm: Zinc alloy
- Colour / Finish
- nickel plated
- Pack Quantity
- 1 Each
26 In stock
£14.35
Ex. VAT: £11.96
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £14.35 | — |
| 5 – 9 | £13.63 | Save 5% |
| 10 – 24 | £12.92 | Save 10% |
| 25+ | £11.48 | Save 20% |
- Technical Specifications
- Dimensions
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 110° |
| Installation | Door on cabinet without tools with clip system |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.6 mm |
