Concealed Cup Hinge 100° Nexis Sprung Full Overlay Mounting Grass Soft close compatible Screw fixing cup click on arm 48/9 - Steel Nickel Plated
Concealed Cup Hinge 100° Nexis Sprung Full Overlay Mounting Grass Soft close compatible Screw fixing cup click on arm 48/9 - Steel Nickel Plated
- For standard applications⌀ 35 mm cup
- Soft-close compatible
- Area of applicationFor standard applications
- Concealed hinge versionFull overlay
- Crank typeCranked
- Door processing for assemblywith cup drilling
- Cup drilling Ø35 mm
- Cup fixingfor screw fixing
Order reference

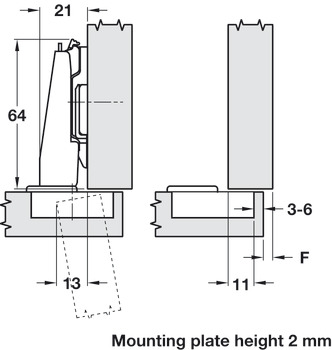

- Wider range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm raised head countersunk screws separately
The Concealed Cup Hinge 100° Nexis Sprung Full Overlay Mounting Grass Soft close compatible Screw fixing cup click on arm 48/9 (product code 322.15.540) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Steel, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 322.15.540 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 322.15.540
- Material
- Steel
- Colour / Finish
- nickel plated
- Pack Quantity
- 1 Each
7,981 In stock
£1.41
Ex. VAT: £1.17
- Technical Specifications
- Dimensions
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 100° |

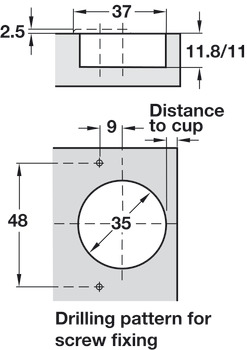

| Drilling pattern | 48/9 |
| Cup drilling depth | 11 mm |
