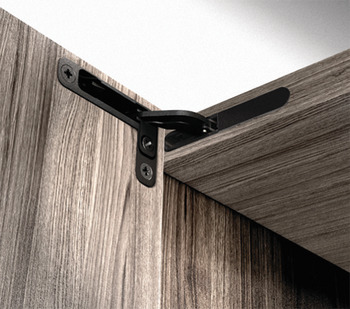

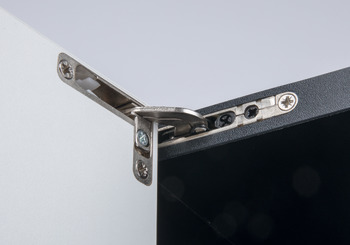

Concealed Hinge 105° Full Overlay Mounting Tiomos H For cabinet thickness min. 18 mm Tiomos Night - Anthracite - Zinc Alloy
Concealed Hinge 105° Full Overlay Mounting Tiomos H For cabinet thickness min. 18 mm Tiomos Night - Anthracite - Zinc Alloy

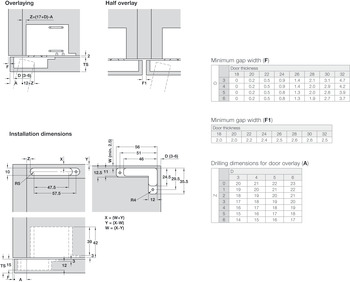

- Perfectly concealed hingeIntegrated soft close damper3D adjustmentDoor rebate depth: 15 mmCabinet rebate depth: 42 mm
- MountingDIN left/right
- For door thickness18 mm
- ModelTiomos
- Adjustment facility
- Side adjustment: ±2 mm, Height adjustment: ±1.5 mm, Depth adjustment: -0.5 – 2 mm
The Concealed Hinge 105° Full Overlay Mounting Tiomos H For cabinet thickness min. 18 mm Tiomos Night - Anthracite (product code 348.21.511) is a Hafele engineered product built for dependable, precise performance in everyday use. Constructed from Zinc alloy, it offers excellent resistance to wear and corrosion for long-lasting service in both professional and domestic settings.
Designed for simple installation with standard tools, this fitting is ideal for joiners, kitchen fitters, furniture manufacturers and builders. Order 348.21.511 from Hafele Direct for fast UK delivery.
Key Details
- Product Code
- 348.21.511
- Material
- Zinc alloy
- Pack Quantity
- 1 Each
95 In stock
£69.84
Ex. VAT: £58.20
- Technical Specifications
| Material | Zinc alloy |
| Supplied with | Set consists of:2x Hinges2x Cover capsFixing screws |
