Article details
When fitted, the door panel is completely concealed within the door frame and door panelConforms to BS EN 1154:1997Power size 3-6Adjustable closing force, speed, latch action and backcheck
Area of application

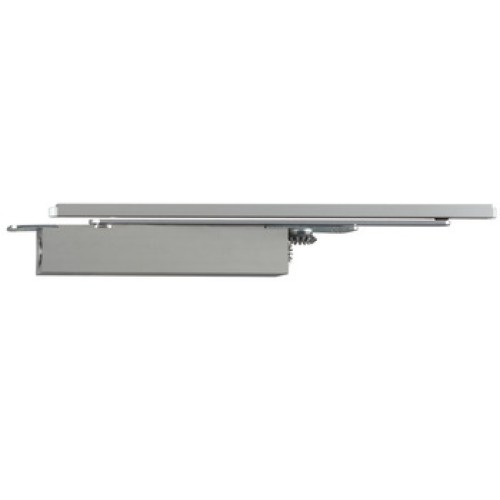

Door closer and guide rail for concealed installation in door

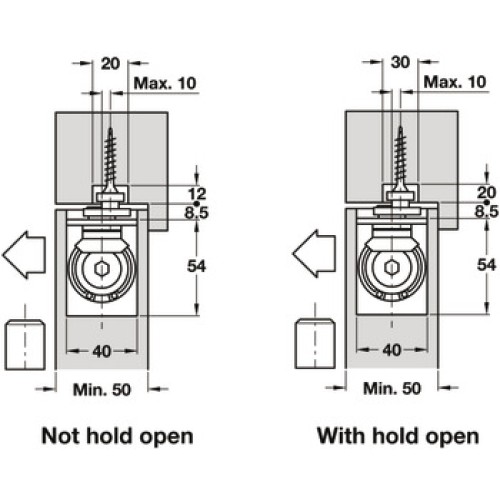

Version
Without hold-open function
For number of doors
1-leaf doors
Adjustment facility
Closing force and closing speed continuously adjustable,Latching action hydraulically adjustable,hydraulic soft opening mechanism adjustable
Closing force
3-6 in compliance with EN 1154
For door width
≤1,400 mm

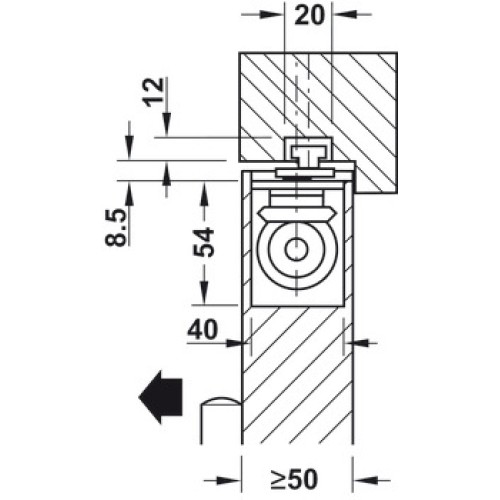

For door thickness
≥ 50 mm
For door weight
≤180 kg
Opening angle
≤120 °
Hold-open angle
80 – 120 °
Standard
Certified in compliance with EN 1154:1996/A1:2002
Grade
3|8|3 – 6|1|1|4
Supplied with
1 Basic closer1 Guide rail
Technical data attributes
Fire resistance and smoke controlFire resistanceYesFS standardTested for fire resistant and smoke control doors.
