Article details
Conforms to BS EN 1154:1996/A1:2002Power size 2-4Variable closing force and latch actionSuitable for standard installation in door and overhead installation in frame
Area of application

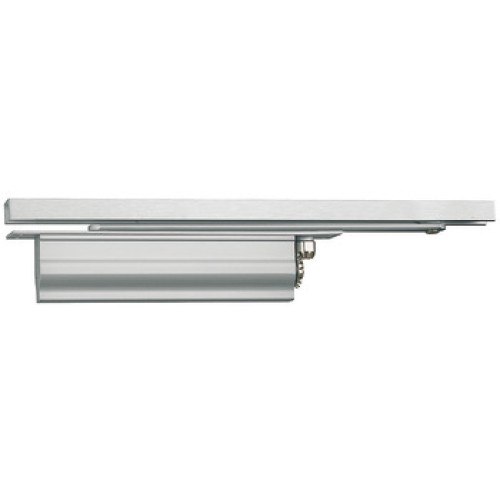

Door closer and guide rail for concealed installation
Version
Without hold open function
For number of doors
1-leaf doors
Adjustment facility
Closing speed continuously adjustable, latching action continuously adjustable
Closing force
2–4 in accordance with EN 1154
For door width
≤1,100 mm
For door thickness
≥ 46 mm
Opening angle
≤115 °
Hold-open angle
≤115 °
Standard
Certified in compliance with EN 1154:1996/A1:2002
Grade
3|8|2 – 4|1|1|3
Supplied with
Fixings
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Technical data attributes
Fire resistance and smoke controlFire resistanceYes
Additional information attributes
Please note that this item does not include a hold open function
