Article details

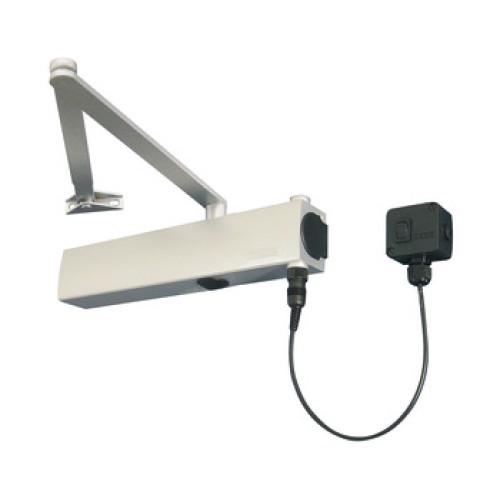

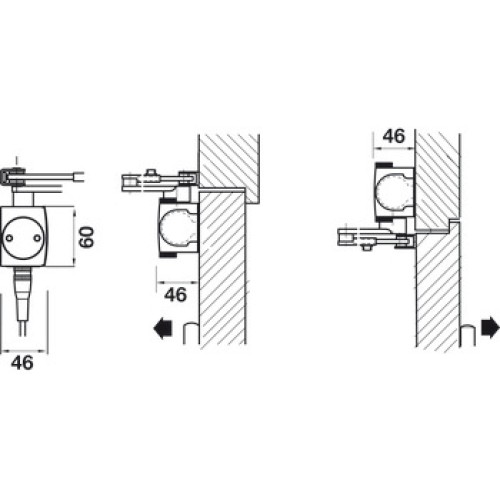

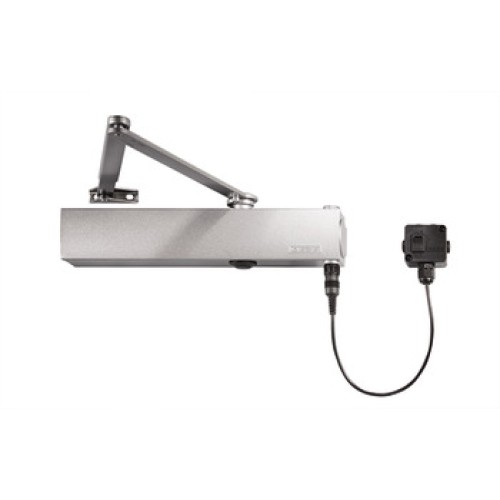

Conforms to BS EN 1155:1997Certifire approved; certificate No. CF252Adjustable closing force, optical strength indicator and hydraulic latch actionFig 1 and 61 applicationWhen voltage applied to closer = door held openVoltage off = door will close automaticallyThe door may be closed manually at any time regardless of whether the voltage is applied or notElectrical data: Operating voltage 24V DC ± 10%. Connecting load 45mA. Max. permissable residual ripple 20%. Voltage tolerance ± 10%. Test switch includedEnclosure rating IP43, for interior use onlyConnection: The power supply cable (max. cross section 0.8 mm2) from the fire detection control unit (24V DC) is connected to terminal box supplied
Body: AluminiumArm: Mild steel
Order reference
RAL colours and copper finishes are also available to order on request
Supplied with
Fixings
