By Perceptive Fittings Ltd
Article details
Suitable for FD30 doors, tested to EN 1634-1Allows doors to swing in either directionDoor plates radiused for easy preparationBottom bracket is frame mountedTop and bottom plates have maintenance free oil impregnated bronze bearingsMaintenance free, guaranteed 25 years

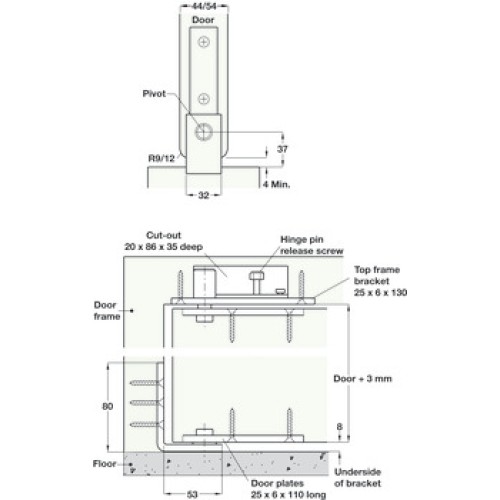

Up to 80 kg door weight when bracket floor mountedMax. door width 1100 mm when jamb mounted44 mm thick doors require R9 radius on pivot edge, 54 mm thick doors require R15 radius
Material
Stainless steel, quality 1.4301/AISI 304
Additional information attributes
It is recommended that both lock and hinge stiles are brush stripped for privacy
Suitable for FD30 doors, tested to EN 1634-1Allows doors to swing in either directionDoor plates radiused for easy preparationBottom bracket is frame mountedTop and bottom plates have maintenance free oil impregnated bronze bearingsMaintenance free, guaranteed 25 years
Up to 80 kg door weight when bracket floor mountedMax. door width 1100 mm when jamb mounted44 mm thick doors require R9 radius on pivot edge, 54 mm thick doors require R15 radius
Material
Stainless steel, quality 1.4301/AISI 304
Additional information attributes
It is recommended that both lock and hinge stiles are brush stripped for privacy

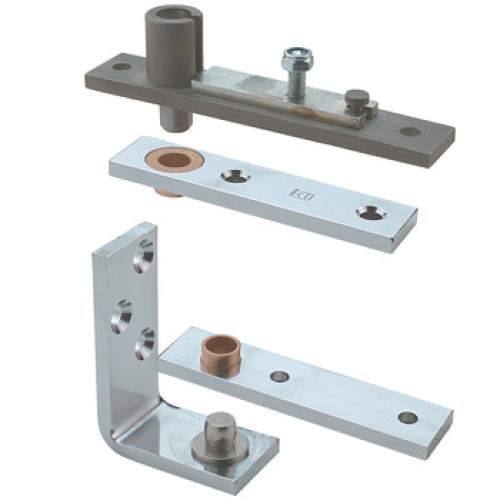

Pivot Set Double Action Frame Mounted Grade 304 Stainless Steel Allows doors to swing in either direction Satin
- Brand: Hafele
- Product Code: 932.87.000
- Availability: 3
-
£139.87
- exc. Vat £116.56
