By Perceptive Fittings Ltd
Article details
Allows doors to swing in either directionDoor plates radiused for easy preparationBottom bracket is frame mountedTop and bottom plates have maintenance free oil impregnated bronze bearingsMaintenance free, guaranteed 25 years

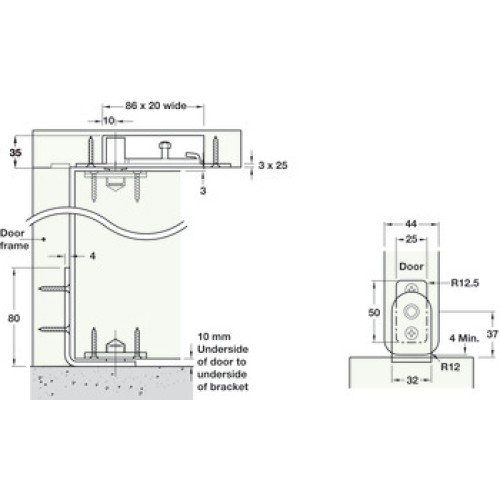

Up to door weight 20 kg when bracket frame mounted, up to 40 kg when bracket floor mountedMax. door width 950 mm, when jamb mounted38 mm thick doors require R21 radius on pivot edge
Area of application
For light duty internal doors
Material
Mild Steel
Supplied with
Set includes door bottom pivot, top centre and ⌀ 5 mm screws to suit
Additional information attributes
It is recommended that both lock and hinge stiles are brush stripped for privacy
Allows doors to swing in either directionDoor plates radiused for easy preparationBottom bracket is frame mountedTop and bottom plates have maintenance free oil impregnated bronze bearingsMaintenance free, guaranteed 25 years
Up to door weight 20 kg when bracket frame mounted, up to 40 kg when bracket floor mountedMax. door width 950 mm, when jamb mounted38 mm thick doors require R21 radius on pivot edge
Area of application
For light duty internal doors
Material
Mild Steel
Supplied with
Set includes door bottom pivot, top centre and ⌀ 5 mm screws to suit
Additional information attributes
It is recommended that both lock and hinge stiles are brush stripped for privacy

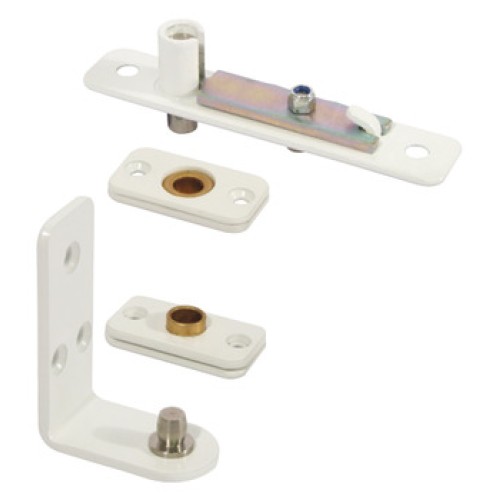

Pivot Set Double Action Frame Mounted Mild Steel Allows doors to swing in either direction White powder coated
- Brand: Hafele
- Product Code: 932.87.057
- Availability: 1
-
£64.31
- exc. Vat £53.59
