Article details

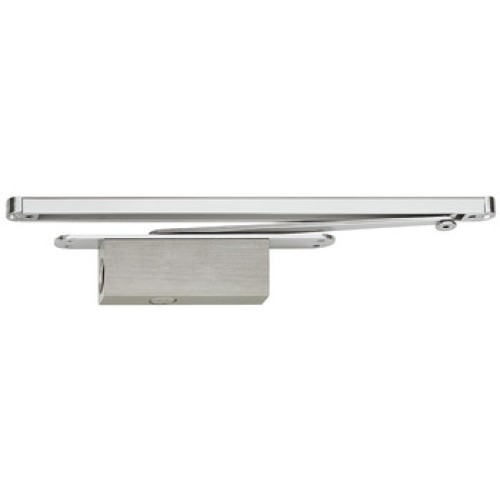

The GEZE ActiveStop has three functions which greatly enhance control and safety: Gentle stopping, silent closing and the ability to stop the door in the desired position to eliminate slamming doorsGentle stopping: Brakes the swing upon opening and stops the door in the desired positionSilent closing: Prevents loud banging with soft silent closure, minimising risk of injuryKeeps the door open to prevent it slamming without needing a separate door stopHolding position can be set individually using the adjustable opening angle
Soft opening and soft closing mechanismsHolds the door conveniently open or pulls it gently into the lockDoor stop not requiredMaintenance-freeArm: Mild steel
Area of application

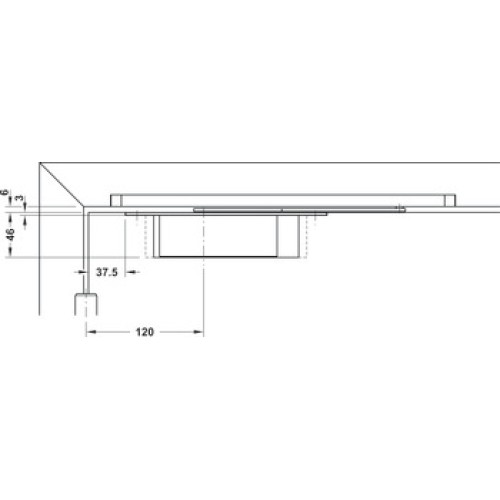

For butting or rebated wooden interior doors, for concealed installation in door leaf
Functioning principle
Closing direction: Soft and self closing from approx. 25°,Opening direction: Soft opening and slow opening from approx. 60°,door is securely held in open position,Free swing range between 25° and 60°
Adjustment facility
Soft closing mechanism adjustable via valve
For door width
≤1,100 mm
For door thickness
≥ 38 mm
Opening angle
80 – 140 °
Supplied with
1 ActiveStop soft and self closing system for doors1 guide rail with glide and end buffer1 connecting arm1 universal door latchbolt blocking deviceMounting material
Additional information attributes
Rebate gap approx. 5 mm, clearance around the arms
