Article details
Integration into Dialock software for convenient configuration and administration of locking points and locking authorisationsPrepared with BLE (Bluetooth Low Energy)Direct connection of up to 4 EFL 3/EFL 3CConnection of 2 antennasExtension of functions possible using individual macros
Product typeFurniture Terminal
Area of application

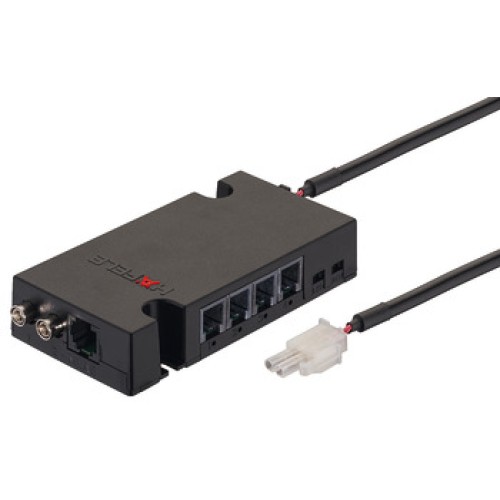

Intelligent furniture terminal, for controlling furniture locks
Material
Housing: Plastic
Order reference
Please order separately:EFL 3 / EFL 3C furniture lockCC 200 connection cable (connecting cable between EFL 3 and FT 200 / MLA 6P / MLA 8)PS 4 power supply unitFAN 200 antennaProgramming and clearing key cardUser keysDialock software and MDU 110 data transfer unit, if requiredA macro is required when installing an acoustic signal generator (see 'optional functions')The plug connector must be ordered additionally when using the potential free input/output portsAn individual macro must be installed initially when using the relay output port
Supplied with
1x FT 200 furniture terminal1x Mains lead
Technical data attributes
Configuration required
Additional information attributes
Standard functionsOperation by holding an authorised user key in front of the antenna which then transmits an opening pulse to the furniture lockSpring bolt lock function: 3 s after the lock has been released, it is automatically locked again (open time setting variable up to 30 s).Deadbolt lock function: The lock is permanently unlocked or locked by holding an authorised user key in front of the lockacoustic feedback as read confirmation of the keyskeyed alike furniture locks:An authorised user key unlocks all locks which are connected to the FT 200 / FT 200 CAP furniture terminal simultaneously.keyed to differ furniture locks:An authorised user key unlocks only certain locks, even though several locks are connected to the FT 200 / FT 200 CAP furniture terminal.Several furniture locks can also be implemented with the MLA 6P / MLA 8 multi-lock adapters.More information on functionality can be found under the MLA 6P / MLA 8 multi-lock adapters.One CC 200 connection cable is also required for each furniture lock.Optional functions:Indication of the locking status, e.g. unlocked door, by means of acoustic or visual (external LED) signal transmittersWith the spring bolt lock function, the opening time of the furniture locks can be set variably up to 30 seconds with the red and green programming cardCustomer-specific requirements (e.g. installation of an acoustic signal generator or actuation of an alarm system) can be implemented using macro programs by requestNotes concerning software operation:If the Dialock software is being used, please contact your appropriate Häfele member of staff.Notes concerning macro programs:Macro programs must be specified beforehand using a request form. This can be found at www.dialock-support.de in the Service section.An MDU 110 data transfer unit and instruction from Dialock technician is required for programming. In the event of detailed questions, please contact your appropriate Häfele member of staff.
