Article details
ANSI hole patternGrade 13 BS EN 1935Two high quality ball race joint bearings
MountingFor DIN left and DIN right hand use
MaterialStainless steel

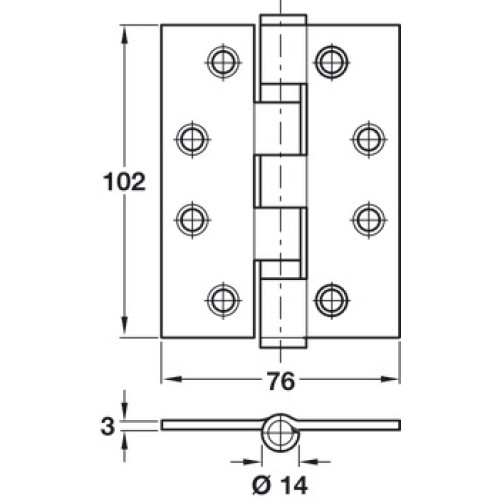

Knuckle diameter14 mm
Flange thickness3 mm
Model series
Butt hinge
Area of application
For wooden or metal framesfor flush wooden or metal interior doors
For door type
Wooden door leaf, metal door
For frame type
Wooden frame, Metal frame
Max. door weight for 2 hinges
120 kg
Routing depth
3 mm
Bearing type
With fixed pin, Knuckle with two ball bearings
Standard
Certified in compliance with EN 1935:2002
Grade
4|7|6|1|1|4|0|13
Order reference
Fixing screws for wooden frames and doors suppliedPlease order fixing screws for metal frames and doors separately
Supplied with
Fixings
