Article details

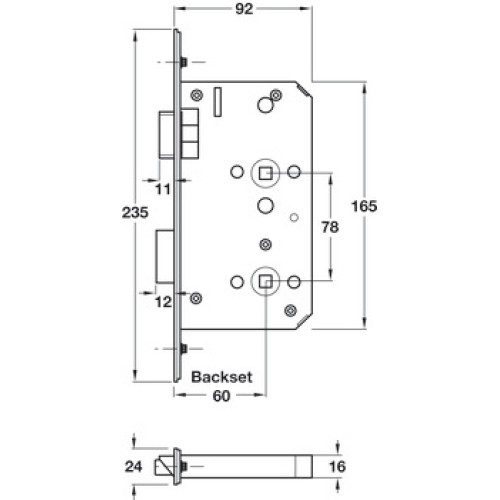

Conforms to BS EN 12209Assessed for use on 30 minute (FD 30) and 60 minute (FD60) timber fire doors to BS EN 1634-1Latchbolt operated by lever handles. Deadbolt operated by turn/emergency releaseCase: Galvanized, 16 mm wideForend: Radius, 2 pieceStrike plate: Radius. Box includedLatchbolt: Bright zinc plated. Easily reversibleDeadbolt: Bright zinc plated. 12 mm throwFollowers: 8 mm. Hold-tite spindle spring. For use with unsprung furniture5-8 mm adaptor included for deadbolt followerHoled for bolt through furniture at 38 mm centresOnly requires a lever depression of approx. 25° to fully retract latchbolt
For door type
Bathroom/WC doors
Version

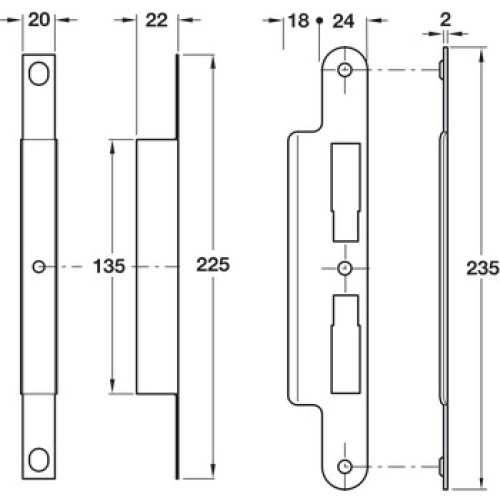

Back lining for strike plate
Colour/finish
Satin stainless steel
Forend length
235 mm
Deadbolt version
Standard deadbolt
Häfele Lifetime Guarantee
10 years
Supplied with
Strike plate5-8 mm adaptorFixings
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Technical data attributes
1808
Additional information attributes
Where a fire rating is shown for a product this would only have been achieved by use of intumescent seals. When fitting any ironmongery to a door please ensure the correct intumescent product is used
