Article details

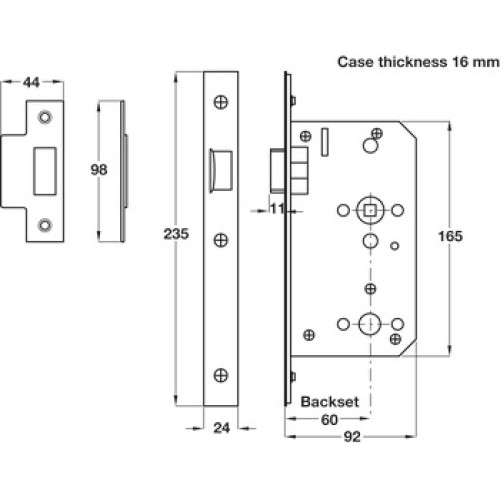

Conforms to BS EN 12209Assessed for use on 30 minute (FD 30) and 60 minute (FD60) timber fire doors to BS EN 1634-1Latchbolt operated by lever handlesCase: Galvanized, 16 mm wideForend: Square, 2 pieceStrike plate: Square, flatLatchbolt: Bright zinc plated. Easily reversibleFollower: Both 8 mm. Latch for use with sprung furnitureHoled for bolt through furniture at 38 mm centres, Only requires a lever depression of approx. 25° to fully retract latchbolt
For door type
Fire resistant doors
For door material
Wood
Lock actuation
Lever handle activated
Colour/finish
Satin stainless steel
Forend length
235 mm
Deadbolt version
Without deadbolt
Classification in compliance with EN 12209
3|X|8|1|0|G||B|0|3|0
Fire resistance category
FD60
Häfele Lifetime Guarantee
10 years
Supplied with
Strike plateFixings
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Technical data attributes
1808
Additional information attributes
Where a fire rating is shown for a product this would only have been achieved by use of intumescent seals. When fitting any ironmongery to a door please ensure the correct intumescent product is used
