Article details

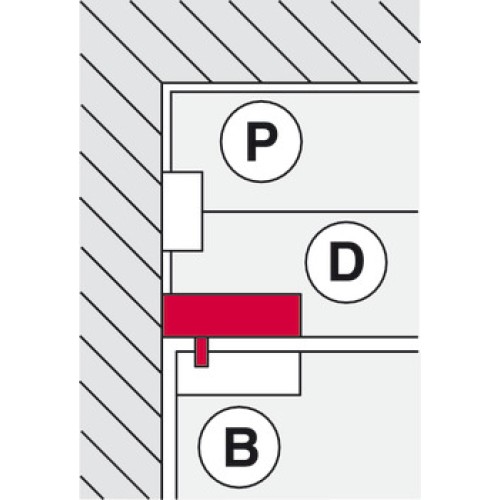

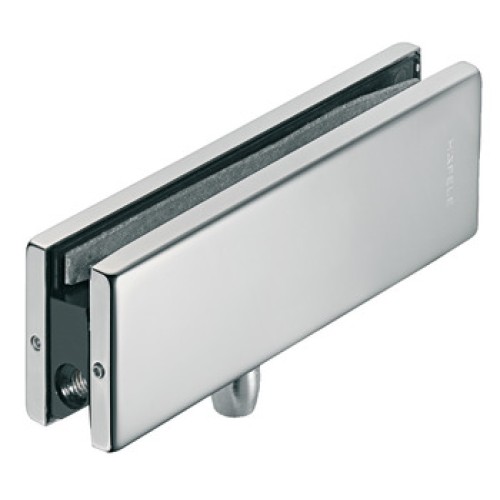

Counter bearing for top patch fittingM8 threaded hole at rear for wall mountingBolt can be adjusted laterally by +/- 3 mm
Area of application
Glass door patch fittings

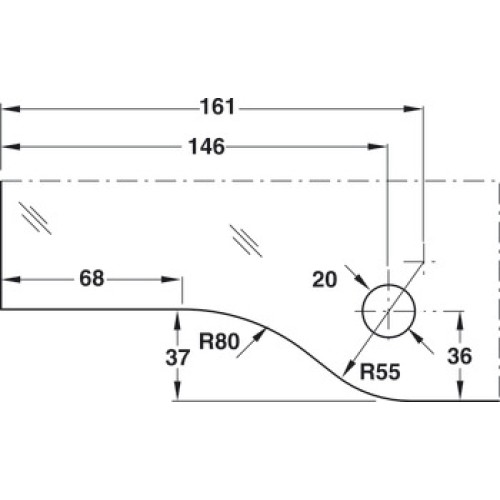

For glass thickness
10 – 12 mm
Cover material
Stainless steel
Version
M8 threaded hole at rear for wall mounting
Installation
concealed clamp fixing with internal hexagon screws
Adjustment facility
Bolt ±3 mm adjustable at sides
Mounting
For DIN left and DIN right hand use
Häfele Lifetime Guarantee
10 years
Supplied with
Adapter plate for 10 mm thick glass and stainless steel covers
