Article details

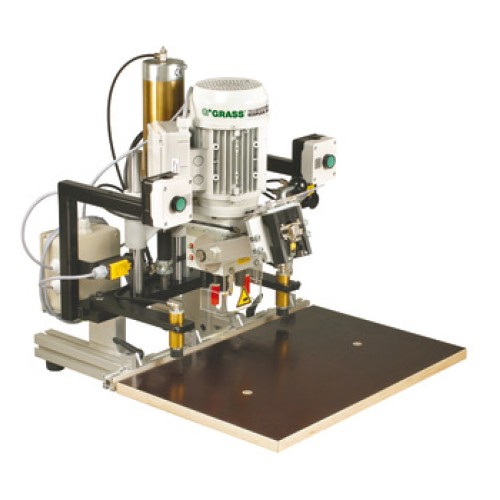

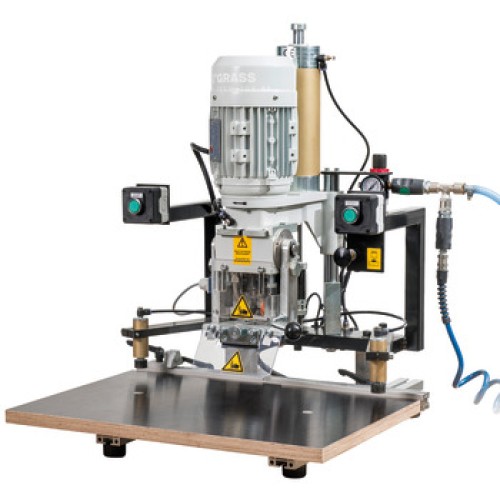

The Tecmator RP is a robust machine designed to make light work of drilling holes for Grass Tiomos concealed cuphingesCertified type-approved design
Connections:Electrical - 1.5 KwPneumatic - 6 bar 3000 NDust extraction - 2x Ø 100 mm
Version
6-spindle
Features

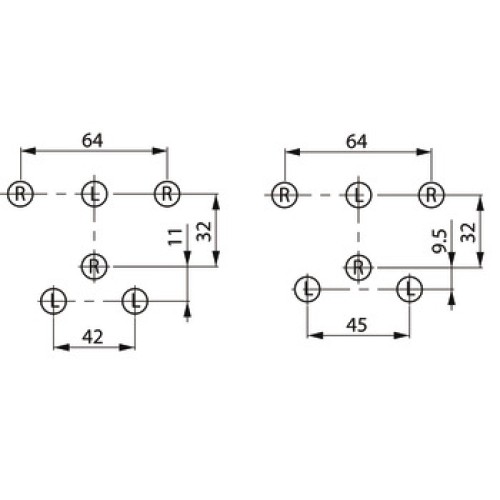

robust and practical assemblyChange the spindle head easily and without problemscertified, type-tested versionpneumatic two-hand-control for rapid and safe working6-spindle drilling head for drilling holes for hinges, mounting plates and connecting fittingsuseful special accessories offer additional processing options for furniture partsDust extraction 2 x ø 100 mm
Mains frequency
50 Hz
Connection
electric: 1.5 KW, pneumatic: 6 bar 3,000 N
Dim. (W x D x H)
800 x 600 x 780 mm
Weight
70 kg
Order reference
Other sized drill bits are available to order separately
Supplied with
1 Tecmator RP6-spindle Drilling head with drill bit1 Press-in matrix for Tiomos hinges1 Set of tools1 Locating ruler 600 mm2 Swivel stops with clamping lever1 Worktop
Technical data attributes
5336
