Article details
Staggered hole patternNon load bearingFour wire facilityLow voltage, normally 24V @ 24 amps
Model series

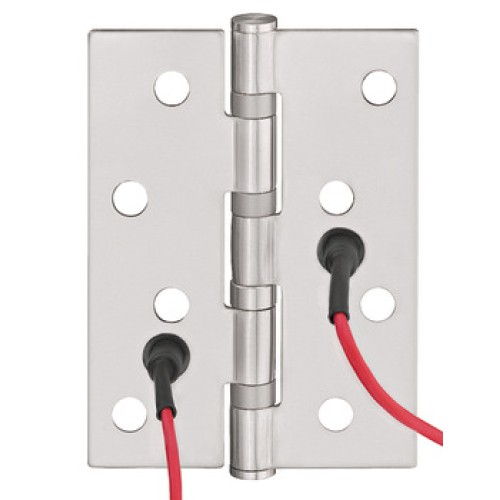

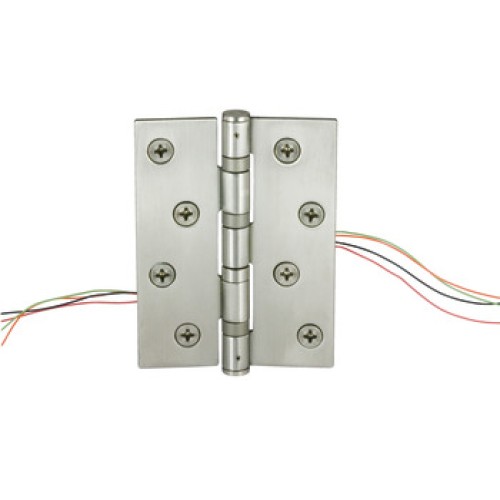

Butt hinge
Area of application
For use when power supply needs to be transferred from frame to doorNon load bearing, for centre position only and to be used with outer pair of compatible hinges
For frame type
Wooden frame, Metal frame
Door thickness
≥35 mm

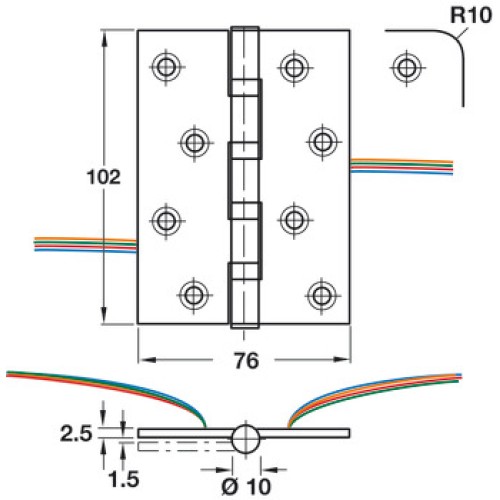

Knuckle length
102 mm
Order reference
Fixing screws for wooden frames and doors supplied.
Supplied with
Fixings
