Article details
Tested to 100,000 cycles and therefore exceeding DIN EN 15338, level 3
Area of application
For use on roller runners, ball bearing runners without retainer retention or groove mounted runners
Material
Plastic
Colour/finish
Light grey and black
Load bearing capacity
50 kg
Note on load bearing capacity
Load bearing capacity: useful load of 25 kg with one-sided installationLoad bearing capacity: useful load of 50 kg with two-sided installation

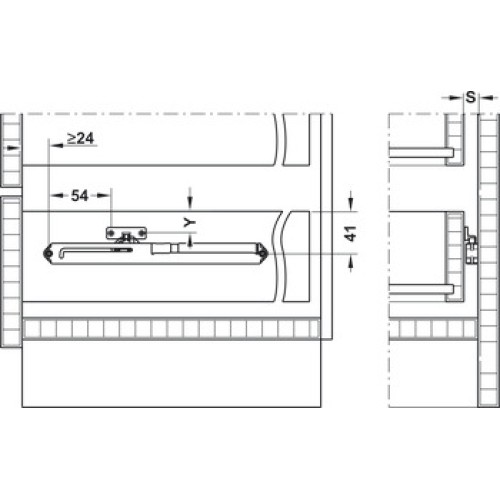

Installation
On one or both sidesSoft and self closing mechanism for screw fixing to cabinet side panelFollower for screw fixing to drawer side
Installation reference
Order reference
Order Hospa Ø 3.0 countersunk and Ø 3.0 pan head screws separately
Supplied with
1x Soft and self closing mechanism1x Follower1x Set of installation instructions
Additional information attributes
The installation on one side or both sides is determined by the installation situation (width, depth, running properties and load bearing capacity of the runners)Always use 2 soft closing mechanisms for drawers wider than 400 mm or if the drawer’s depth exceeds its width
