By Perceptive Fittings Ltd
Article details
The spring counter balances the weight of the seat top to assist openingSpring on both sides
No separate hinge connection required1 piece = 1 pair
Opening angle
95 °
Area of application
For seat tops weighing 8 kg or 12 kg max
Material
Steel
Order reference
Fixings not included, order Varianta Ø 5 cylindrical head screws separately
Additional information attributes
Large pivoting distance to the front (110 mm) allows seat panels to be raised, even with thick upholstery.A gap between the seat panel and the backrest is not required.The springs for a panel weight of 8 kg or 12 kg provide an optimum counterbalancing mechanism and make opening easy.
The spring counter balances the weight of the seat top to assist openingSpring on both sides
No separate hinge connection required1 piece = 1 pair
Opening angle
95 °
Area of application
For seat tops weighing 8 kg or 12 kg max
Material
Steel
Order reference
Fixings not included, order Varianta Ø 5 cylindrical head screws separately
Additional information attributes
Large pivoting distance to the front (110 mm) allows seat panels to be raised, even with thick upholstery.A gap between the seat panel and the backrest is not required.The springs for a panel weight of 8 kg or 12 kg provide an optimum counterbalancing mechanism and make opening easy.

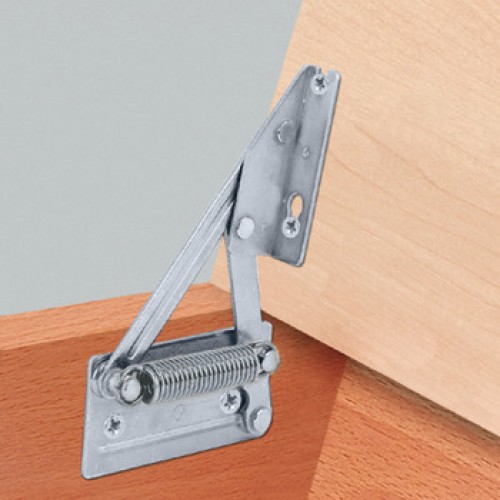

Bench Seat Hinge with Spring Steel For seat tops weighing 8 kg or 12 kg max Weight 12 kg blue zinc galvanized spring
- Brand: Hafele
- Product Code: 643.01.525
- Availability: 193
-
£11.66
- exc. Vat £9.71
