Article details

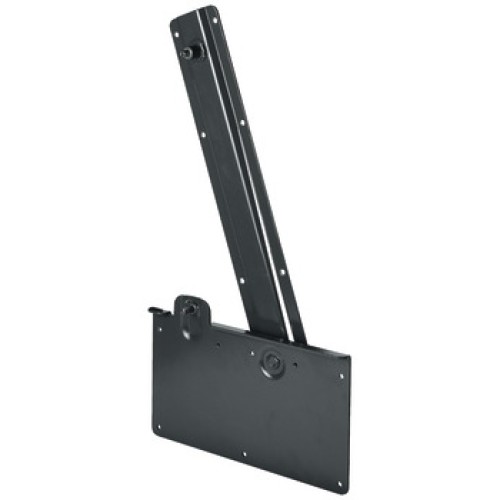

For construction of foldaway beds according to customers own requirementsMax. installation height 2300 mmConsists of1 pair x Folding fittings with pivot bearings and positioning bolts for gas pistons2 x Securing bracketsGas pistons must be ordered separately depending on weight of the bed. 2 gas pistons are required per bed fitting
It is essential for foldaway beds to be secured against tipping, according to EN 1129, (check the floor suitability). Two safety stops are enclosed with every fitting setBed weight = total weight of the bed box, slatted frame, mattress and beddingInternal cabinet height= Mattress width + bed frame thickness (x2) + 125 mmInternal cabinet width= Mattress length + bed frame thickness (x2) + 54 mmA gap of 4mm is required on all sides between the cabinet and front panel
Area of application

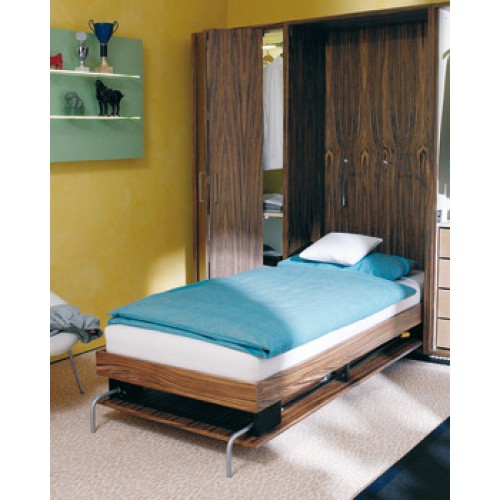

Foldaway beds
Material
Steel
Load bearing capacity
100 kg
Installation
Max. installation width 1500 mm, min. installation depth 420 mm, plinth height 90 mm
Order reference
Gas pistons to be ordered separately
Supplied with
2 x Securing brackets, 1 x safety lever with stop plate, fixing materials and detailed installation instructions
Technical data attributes
Construction suggestionMaterial thickness of bedding box and cabinet20 mmInternal cabinet heightMattress length + 170 mmInternal cabinet widthMattress width + 94 mm
Additional information attributes
Bed weight = total weight of the bed box, slatted frame, mattress and bedding.Two bed boxes must be mounted next to each other to make a double bed. Not compatible with centre support.
