Article details
Recessed front and slatted frameInstallation depth 450 - 600 mmPlinth height 75 - 100 mmSingle foldaway bed load carrying capacity 100 kgDouble foldaway bed load carrying capacity 60 - 80 kgLoad capacity includes front panel, mattress and bed clothingThe gas filled struts are designed for a certain load capacity; stronger or weaker gas filled struts are available to order for different weightsAvailable without mattress only
Area of application
Foldaway beds
Functionality
Automatic foot mechanism: Angular feet automatically come out when the bed is opened and are retracted when the bed is closed again.
Material
Torsion-free tubular steelLaminated woodRubber

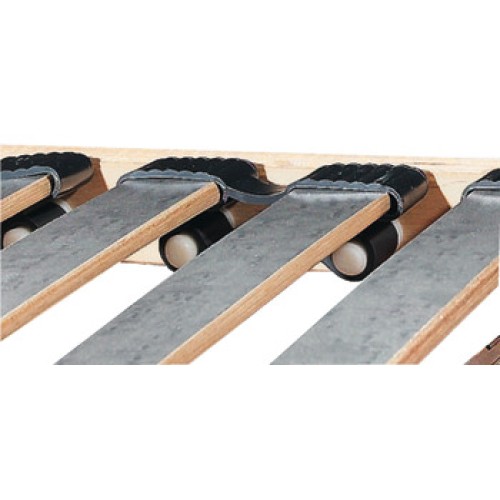

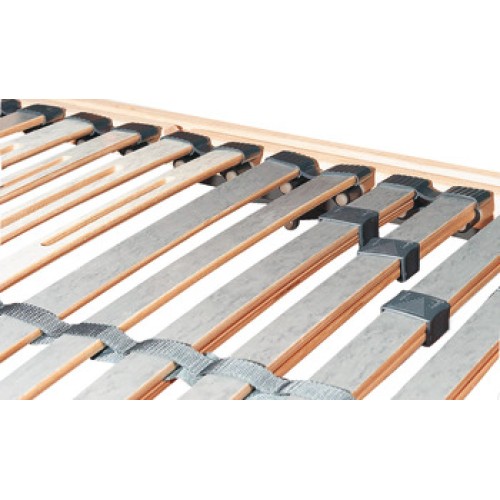

Slatted frame support
28 flexibly mounted resilient wooden slats, with shoulder comfort zone, 5-times central zone reinforcement and centre strap, continuously adjustable firmness
Operation
with gas-filled strut for easy opening and closing
Load bearing capacity
100 kg
Installation

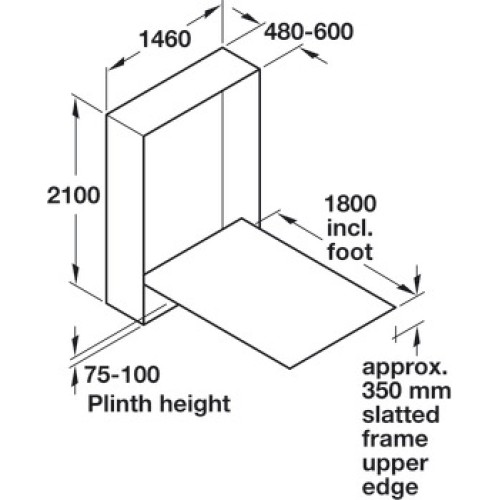

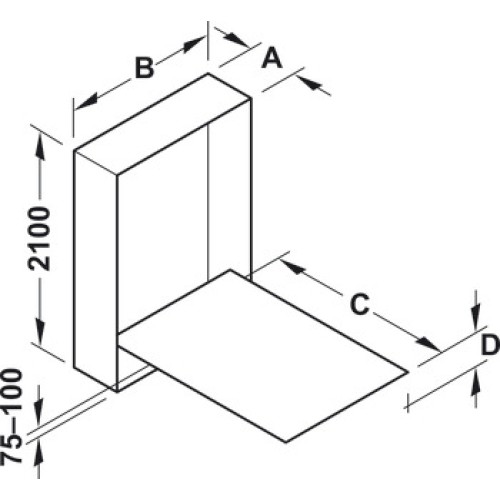

Installation width 1460 mm, installation depth 480 - 600 mm
Internal cabinet width
960 mm
Internal cabinet height
2100 mm
Order reference
Order 2 single beds and 1 centre support to make a double bed.
Supplied with
2 x gas pistons, 2 x securing brackets (anti-tilt facility), 3 x bedding straps and 2 x mattress holders
Technical data attributes
Configuration required
Additional information attributes
Built-in foldaway bed for mattress size 1,600 x 2,000 mm from 25 pieces available on request.Replacement gas-filled struts for foldaway beds 271.91.135/136 are double lift gas-filled struts and only available for bed weight of 60–80 kg.
