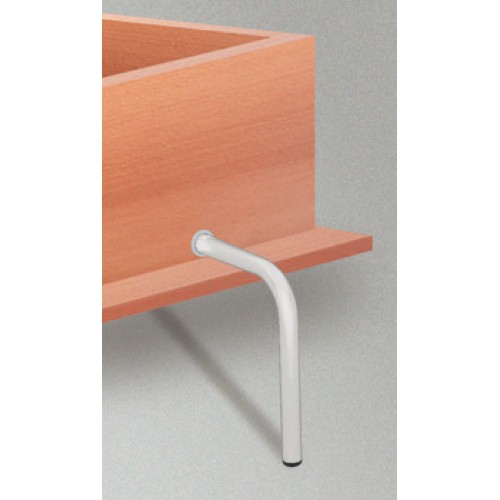

Folding feet are necesssary to support the bed when loweredThe L-shaped foot is extended and turned through 90° when the bed is lowered and returned in the reverse manner when the bed is stowedThe guide tube incorporates a mounting plate which is screw mounted to the inside of the wooden frame or bed panel

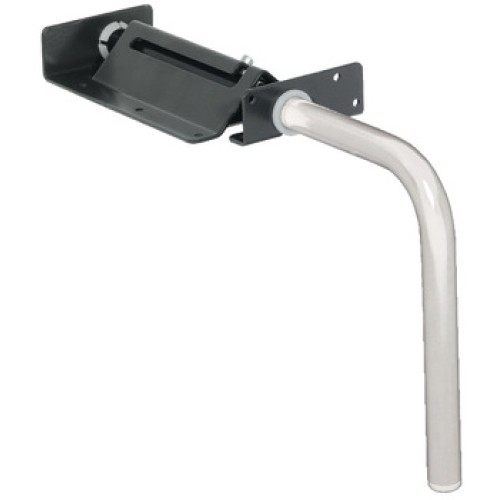

To support the opening bedFor use with Foldaway Fitting Bed Sets 271.95.204 and 271.95.203When opening the bed, the angular feet must be extracted, turned by 90º and retracted to the stopThe angular feet with mounting plate are screw-mounted to the foot side of the bed frame and and to the inside of the front panelA minimum 40 x 40 mm square beam is needed on four sides as a slatted frame support
Area of application
Foldaway bed
Material
Steel
Version
With mounting plate
Installation
Screw fixing
Installation reference

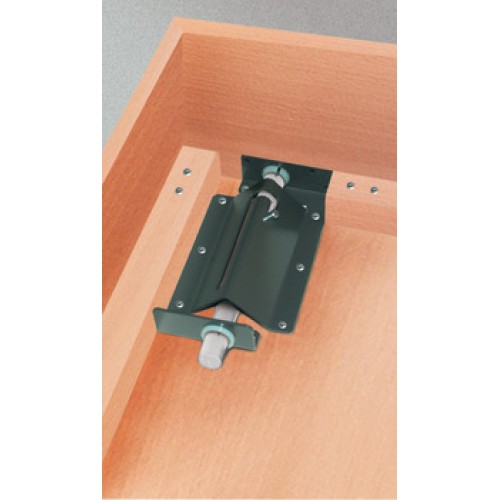

Screw the mounting plate of the angular bracket to the foot of the bed frame and the rear of the front panel. Attach squared timber measuring at least 40 x 40 mm surrounding the frame for the slatted frame support.Screw mounting plate of the angular bracket to the foot of the bed frame and the rear of the front panel. Attach squared timber measuring at least 40 x 40 mm surrounding the frame for the slatted frame support.
Finish
Silver RAL 9006 tube, anthracite RAL 9011 fitting
