Article details
With or without integrated soft closing mechanism
Area of applicationFor wooden doors
Concealed hinge versionHalf overlay mounting/twin mounting
For door materialWood, Aluminium frame
Door processing for assemblywith cup drilling
MaterialSteel
Colour/finishnickel plated
Opening angle110°
Cup drilling depth12 mm
Cup drilling Ø35 mm
Cup fixingfor screw fixing
Drilling pattern45/9.5
Adjustment facilitySide adjustment ±3 mm
Height adjustment ±2 mm (via mounting plate)
Depth adjustment ±2 mm
InstallationDoor to cabinet for quick fixing with SM quick fixing system
Häfele Lifetime Guarantee
25 years
Order reference
Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Technical data attributes
3446
3444
Additional information attributes

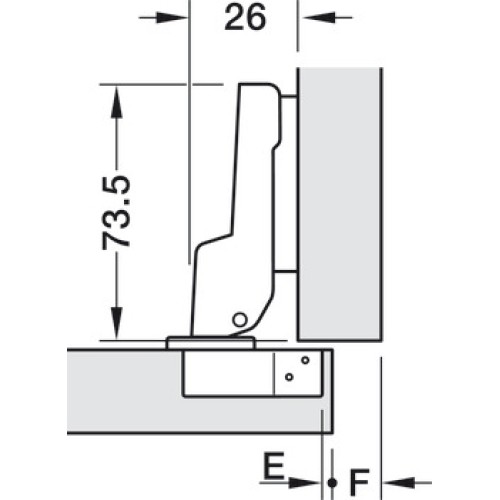

Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
