Article details
For standard application⌀ 35 mm cupUp to 24 mm overlay
Up to 28 mm door thickness (for door thicknesses 29 mm and above, a trial fitting is recommended)
Area of applicationFor standard application
Concealed hinge versionFull overlay plus
Crank typeStraight
Door processing for assemblywith cup drilling
MaterialSteel
Opening angle95°
Cup drilling depth12.6 mm
Cup drilling Ø35 mm
Cup fixingfor screw fixing

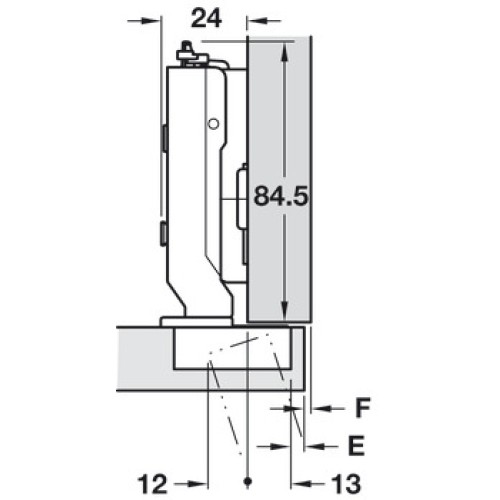

Drilling pattern45/9.5
Order reference
Order mounting plate and Hospa ⌀ 3.5 mm countersunk screws separately
