Article details

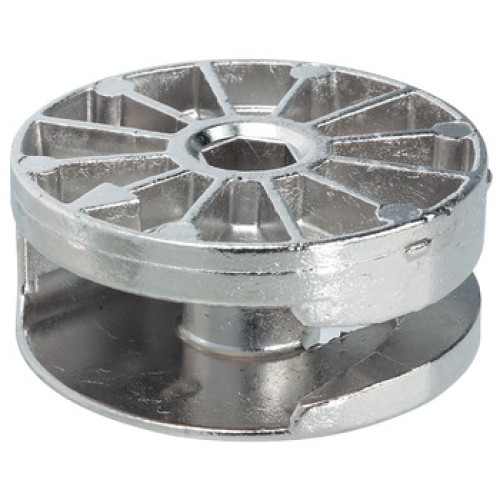

The Maxifix connector system is particularly suitable for permanently load bearing connections, e.g. for cabinet and bedroom construction, as well as in counter or post furniture construction. It is suitable for use from a wood thickness of 19 mmFor extremely stable connections subjected to heavy loadsFor use in wood
For wood thickness≥19 mm
Drilling depth15.5 mm
Dim. A9.5 mm
Drill hole Ø housing35 mm
Area of application
For extremely stable connections subjected to heavy loads
Material
Zinc alloy
Suitable for
Connecting bolt with drill hole Ø 9 mm.
Installation

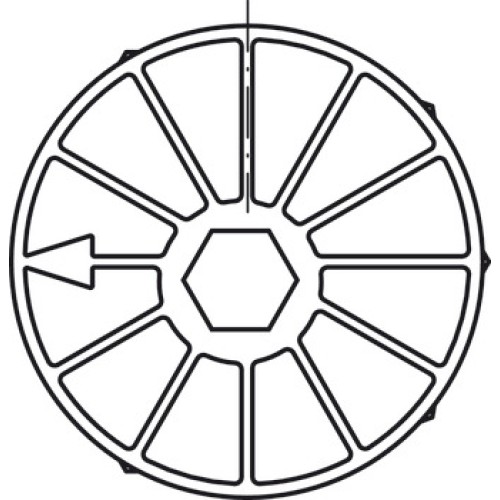

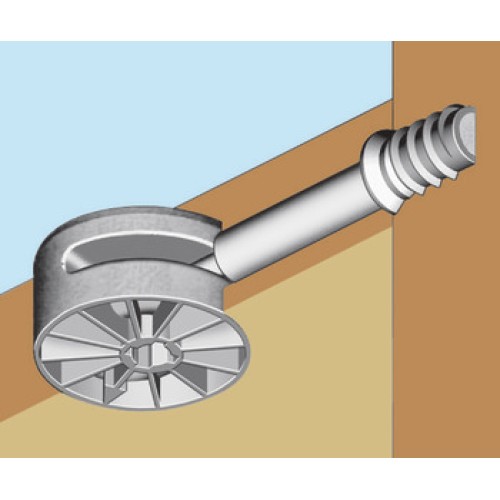

Drilling distance A: distance between middle of bolt hole and top edge corresponds to half of the wood thickness (with 19 mm wood thickness).Drilling dimension B: distance from middle of Maxifix housing to front edge of lateral element (35 or 55 mm), depending on choice of connecting bolt.
Häfele Lifetime Guarantee
25 years
Material
Zinc alloy
Additional information attributes
Dimension A: Distance between centre of bolt hole and top edge, corresponds to half of the wood thickness (with 19 mm thick wood).
