Article details
Area of application
For concealed mounting of shelvesFor installation into woodwork or masonry wallsSuitable for all domestic applications, especially shelving systems, radiator screens and telephone supports
Material
Steel
Note on load bearing capacity
The load bearing capacity of the shelf support is dependent on: Shelf materialShelf depthProperties and condition of wall

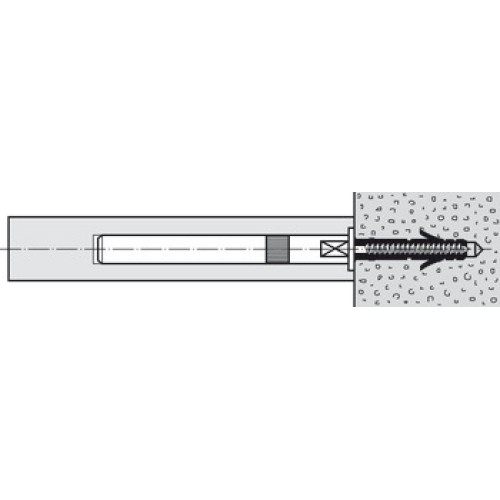

Installation

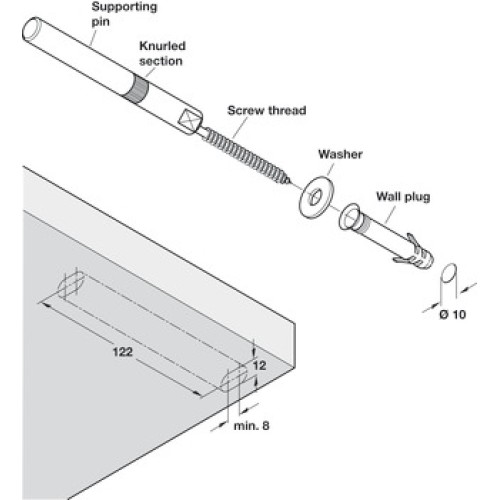

Drill Ø 10 mm hole and insert wall plugSlip washer (supplied) onto screw threadScrew shelf support into wall plugInstall shelf on support as far as the knurled sectionUse an SW 10 open-ended wrench for vertical adjustmentFinally push the shelf all the way to the wall
Order reference
More than 2 pcs may be required per shelf depending on shelf weight and dimensions

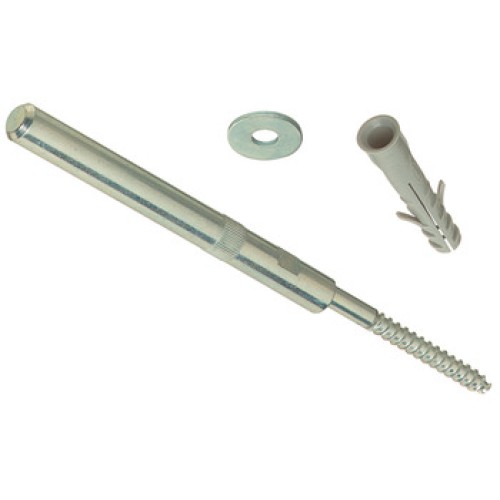

Supplied with
1x Supporting pin with screw, hardened steel1x Washer, galvanized steel1x Wall plug, SR 10 60 mm, grey nylon
Technical data attributes
Configuration required
