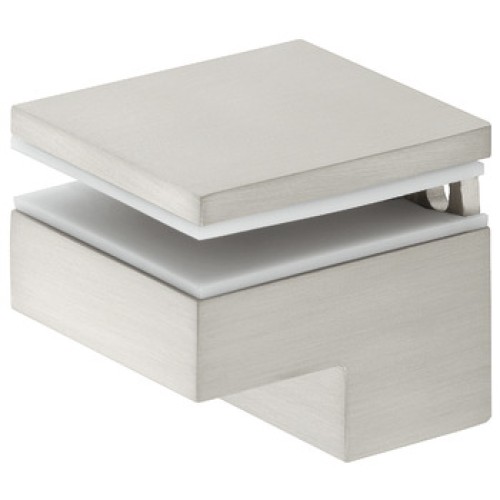

Article details

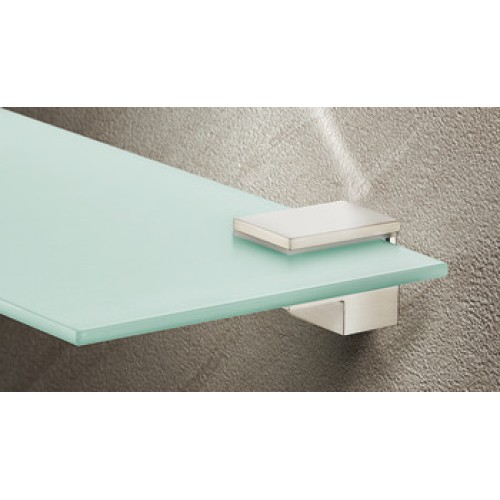

Area of applicationfor wooden and glass shelves
For shelf thickness6 – 25 mm
Dim. (W x D x H)40 x 60 x 32 mm
Wall distance9.5 mm
Version
For glass and wood
Material
Zinc alloy
Load bearing capacity per item
12 kg
Note on load bearing capacity
Per piece; tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 1,000 x 150 x 25 mm, i.e. 24 kg load bearing capacity with surface load and 2 supportsThe specified load bearing capacity applies only with proper and reliable attachment to the wall.
Installation
For screw fixing to support element Shelf is secured by tightening with clamps
Installation reference
The specified load bearing capacity applies with proper and reliable attachment to the wall. The fixing method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall, use other fixing material if necessary.
Adherence to standards
In compliance with DIN EN 16337:2013, i. e. 24 kg load bearing capacity with 2 shelf supports, tested with 1.7 kg plate for impact test and shelf size 1000 x 160 x 25 mm
Area of application
For glass and wooden shelves
Distance between bases
700 mm
Supplied with
Fixing material supplied.
Additional information attributes
Max. distance between two shelf supports: 700 mm.The specified load bearing capacity applies only with proper and reliable attachment to the wall.
