Article details
Engineering plastic is a high quality plastic with good strength and weight qualities

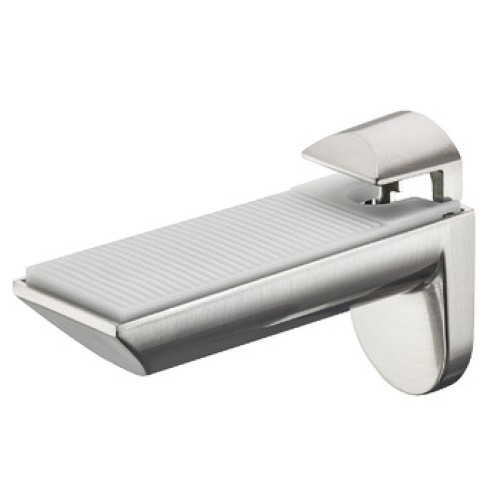

Adjustable shelf support
Area of applicationfor wooden and glass shelves
For shelf thickness7 – 41 mm
Version
Kaiman
Material
Zinc alloy
Load bearing capacity per item
25 kg
Note on load bearing capacity
For a shelf 320 mm deep
For shelf depth
≤320 mm
Installation
Wall fixing
Installation reference
Special fixing method for fine adjustment of bracket height to ensure shelves are levelShelf clamped between a layer of ridged plastic on both the lower and upper sideThese shelf supports can be spaced every 400-500 mm, depending on the use, load, material and thickness of the shelfEngineering plastic is a high quality plastic with good strength and weight qualities
Area of application
For glass and wooden shelves
Supplied with
Screw fixings for fixing to concrete or brick walls
Additional information attributes
The load bearing capacity of the brackets depends on the shelf material, shelf depth and type of wall to which they are being attached.The mounting method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall, use other fixing material if necessary.
