Article details
Track with ball bearing mounted carriage for sliding base units, table tops or display wallsLinear motion guide and ball bearing carriageCorrosion resistantLoad bearing capacity determined by mounting psotion and number of ball bearing carriages. Please see catalogue page for info.Weight must be evenly distributed over the rec-circulating ball carriagesThe specified values apply to performed test distance of 80,000 mFix track as recommended on rigid or flat surface

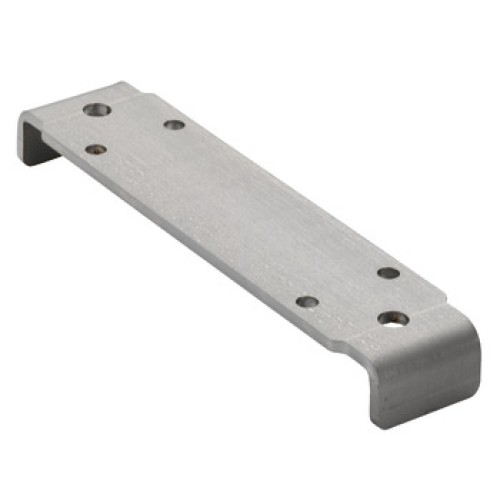

Required to reset damper mechanism Not required if used with door mounting kit
Area of application
For resetting the soft closing mechanism
Suitable for
Accuride 0116 linear runners
Material
Steel
Thread
M6
Installation
For screw fixing onto recirculating ball carriage
Order reference
Please order M6 countersunk head screws separately.One return bracket must be ordered for each recirculating ball carriage when using the soft closing mechanism.
Additional information attributes
The recirculating ball carriage should be lubricated with lubricating grease in accordance with NLGI 2. In order to do this, a suitable amount of lubricating grease is applied through the holes in the gear/return bracket using a conical lubrication nozzle.
