By Perceptive Fittings Ltd
Article details
Two way travel
Tested to 80,000 cyclesTwo-sided access with continuous frontsLocks in the centre
VersionHold-in (at centre)
Type of pull out
Full extension
Area of application

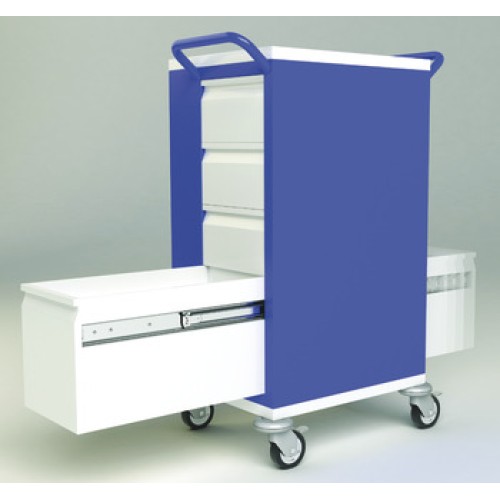

Use for pull through drawers when access is required from both sides of unit
Holding function
Hold-in
Removing the running track
without release lever
Material
Steel
Width
144 mm
Dim. (W x H)
144 mm
Installation
Side mounting
Order reference
Order Hospa Ø 4.0 countersunk screws separately (max. head height 2.5 mm, Ø 9.6 mm)
Additional information attributes
Front panels must be notched for two-way travel drawers with continuous front panels.
Two way travel
Tested to 80,000 cyclesTwo-sided access with continuous frontsLocks in the centre
VersionHold-in (at centre)
Type of pull out
Full extension
Area of application
Use for pull through drawers when access is required from both sides of unit
Holding function
Hold-in
Removing the running track
without release lever
Material
Steel
Width
144 mm
Dim. (W x H)
144 mm
Installation
Side mounting
Order reference
Order Hospa Ø 4.0 countersunk screws separately (max. head height 2.5 mm, Ø 9.6 mm)
Additional information attributes
Front panels must be notched for two-way travel drawers with continuous front panels.

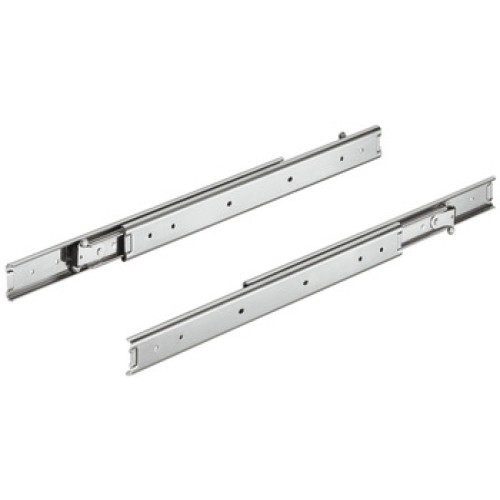

Ball Bearing Drawer Runners Full Extension Load Capacity 35-45 kg Accuride 3630 Two way travel Installed length 500 mm load capacity 45 kg bright zinc plated
- Brand: Hafele
- Product Code: 422.84.950
- Availability: 23/10/2025
-
£98.43
- exc. Vat £82.03
