Article details
12.7 mm slide thickness (14 mm with mounting bracket)Front disconnect (by depressing lever) for drawer removalHold-in feature holds the closed drawer in
Tested to 80,000 cycles
Type of pull out
Full extension
Holding function
Hold-in
Removing the running track
With release lever
Material
Steel
Bearing
Ball bearing

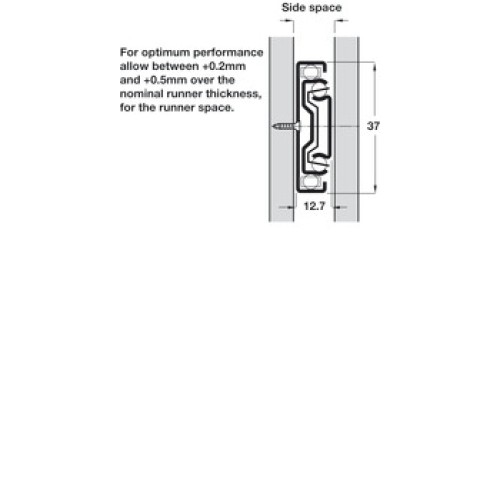

Installation
Side mounting, or with bracket bottom/shelf mounting
Order reference
Optional brackets available, for bottom or shelf mountingOrder Varianta Ø 5 cylindrical and Hospa Ø 4.0 pan head screws separatelyFixings: Max. head height 2.5 mm, Ø 9.6 mm
