By Perceptive Fittings Ltd
Article details

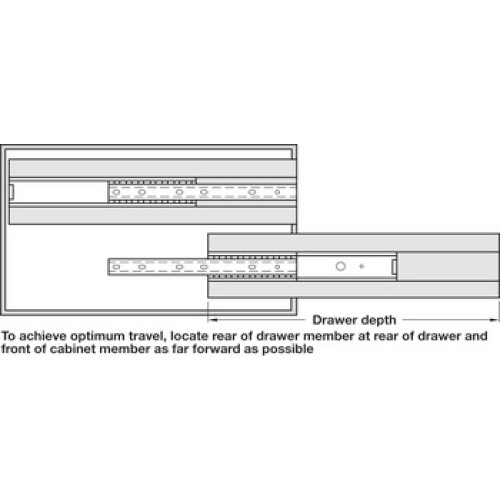

Achieves maximum travel with a single extension runnerSingle extension
For drawer depth 680 mmTested to 50,000 cycles
Type of pull out
Single extension
Removing the running track
without release lever
Material
Steel
Bearing
Ball bearing
Installation

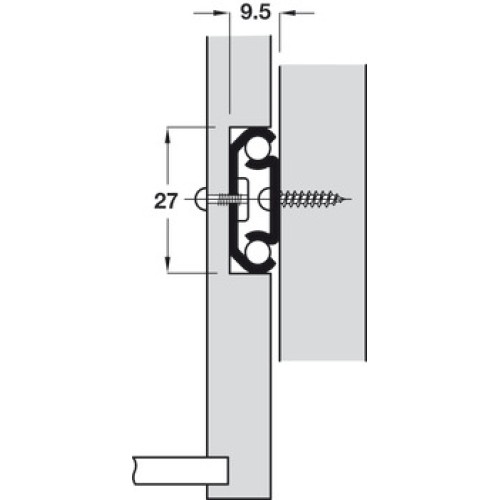

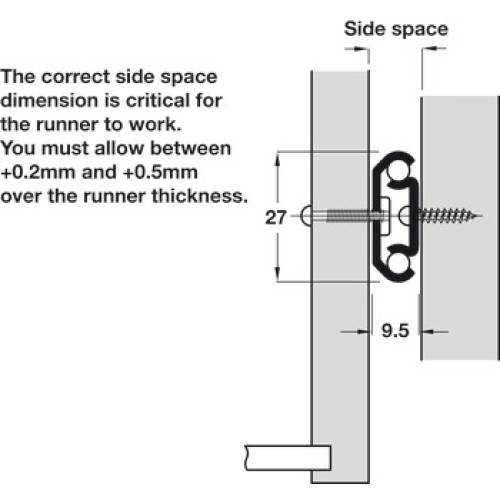

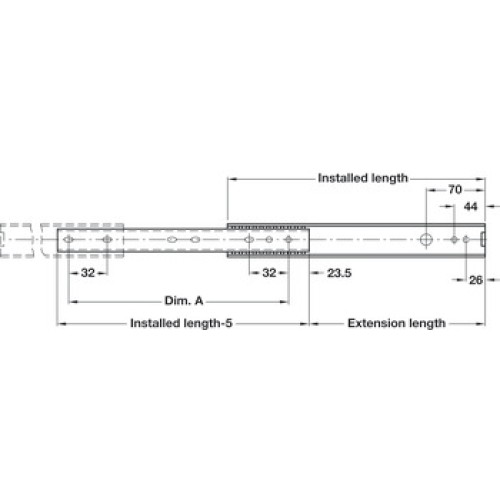

27 mm groove or surface side mountingAdditional holes in drawer member for surface mountingM4 threaded hole on drawer member32 mm hole pattern on cabinet member
Order reference
Order Hospa Ø 4.0 flat head and M4 handle screws separately
Achieves maximum travel with a single extension runnerSingle extension
For drawer depth 680 mmTested to 50,000 cycles
Type of pull out
Single extension
Removing the running track
without release lever
Material
Steel
Bearing
Ball bearing
Installation
27 mm groove or surface side mountingAdditional holes in drawer member for surface mountingM4 threaded hole on drawer member32 mm hole pattern on cabinet member
Order reference
Order Hospa Ø 4.0 flat head and M4 handle screws separately

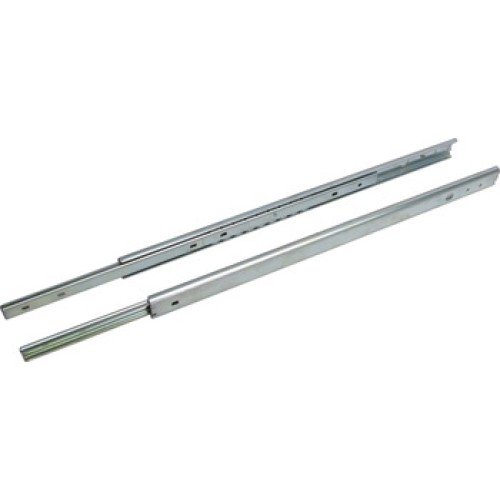

Ball Bearing Drawer Runners Single Extension Load Capacity 15 kg Accuride 2726 Two way travel runner For drawer depth 400-680 mm installed length 400 mm
- Brand: Hafele
- Product Code: 420.99.940
- Availability: 191
-
£10.14
- exc. Vat £8.45
