Article details

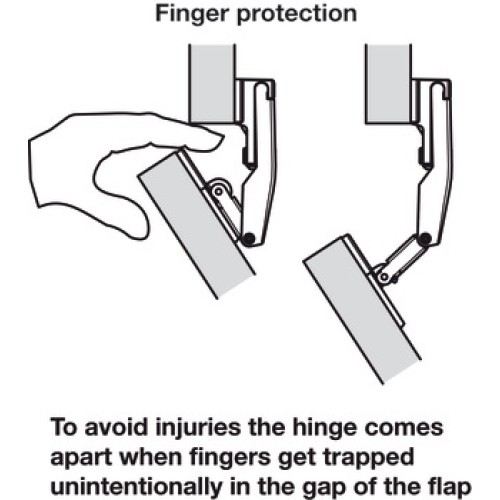

Complete fitting setTime saving installation provided by plugs, pre-mounted euro screws and clip fixing for front panelFor use in furniture in kitchens, living rooms, bathrooms and officesFlap locks in any position (multi-position stop function)Finger safe: To avoid injuries the hinge comes apart when fingers get trapped unintentionally in the gap of the flapAssisted opening and soft closingMin. 110° opening concealed hinges are required
Area of applicationFor two-piece wooden flaps
MaterialFitting: SteelBrackets: PlasticHinges: Zinc alloy
Lid materialWood
Flap typetwo-piece
Adjustment facilityHeight and side adjustment ±3 mm, holding power, centre pull and opening angle adjustableAdjustable fitting suitable for flap weights 2-20.3 kg
Model series
Free fold
Häfele Lifetime Guarantee
25 years
Order reference
Min. 110° opening concealed hinges are required - order Quick Fixing 125° hinge and mounting plate separatelyVarianta Ø 5 mm countersunk screws to be ordered separately
Supplied with
1x Pair Free Fold piston arms and cover caps2x Brackets, for mounting piston arms, from frame width 45 mm, screw fixing2/3x Finger safe connecting hinges, for frame width 20 mm, with adjustment, screw fixingInstallation instructions
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
