Article details
Suitable for installation in front flap cabinets min. 820 mm high, min. 400 mm wide with min. installation depth 270 mm
Important: Designed to support a chipboard front with maximum dimensions 590 mm high, 400 mm wide, 19 mm thick, maximum weight when full 5 kg
Model series
Flap-Ex
Order reference
For installation of the front flap, 2 cup hinges and a Mini Latch catch should be ordered seperatelyOrder Varianta Ø 5 raised head and Hospa Ø 4.0 mm countersunk screws separately
Supplied with

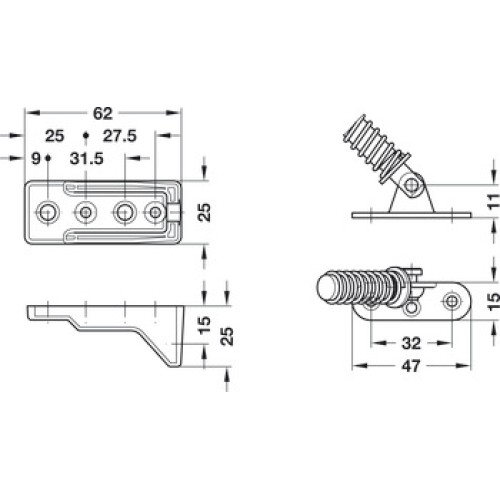

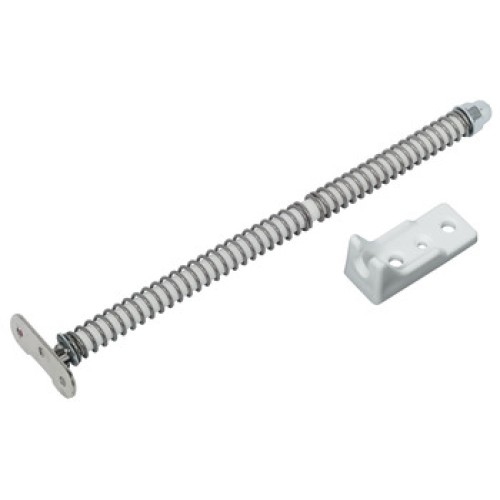

1 Angular bracket1 Rod with plastic sleeve2 Washers2 Spiral springs: front 126 mm long, rear 90 mm long1 Bearing, packed loose
Technical data attributes
Configuration required
Configuration required
Configuration required
Configuration required
Additional information attributes

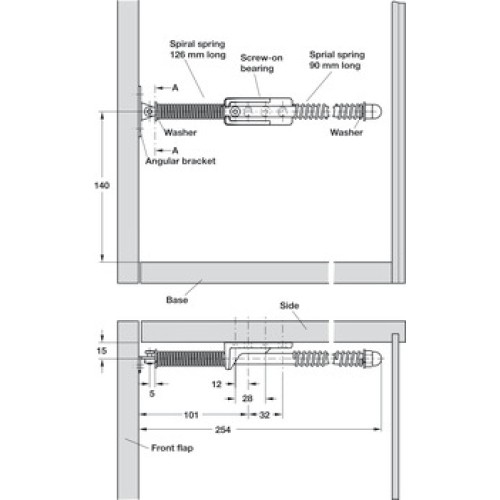

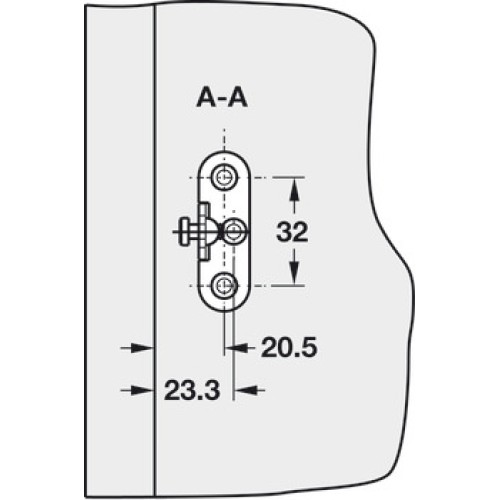

Mounting instructions:Screw fix angular bracket to front panel and bearing to side panelPush rod into bearing between the two spiral springs
