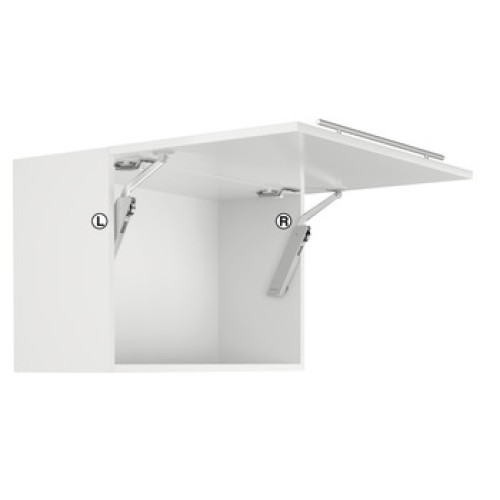

Can be used as: Free Flap H 1.5 Push-to-Open - Handle free application, mounting version for automatic complete openingFree Flap H 1.5 Touch Opening - Handle free application, mounting version for opening the flap slightly, with multi position stopFree Flap H 1.5 Handle Mounting - Application with handle mounting version for power assisted opening of flap
Handed designClip-mounting on pre-mounted screw fixing bracket included, no tools requiredUse two Free Flap 1.5 fittings for cabinet width of 600 mm and above
For additional measurements table, please see catalogue page
Area of applicationFor one piece flaps made of wood, with aluminium or all-glass front panels
VersionSingle set for one-sided use
MaterialSupport arm: Zinc alloyCover cap and fitting accessories: Plastic
Colour/finishMetal supporting arm: Nickel plated
Lid materialWood, Glass, Aluminium frame
Flap typeone-piece
Opening angle75 – 110 °
For lid width600 mm
For cabinet depth192 – 149 mm
For lid weight1 – 11 kg
Adjustment facilityHolding power adjustment
InstallationScrew and clip fixing
Model series
Maxi
Häfele Lifetime Guarantee
25 years
Order reference
Glass gluing adaptor for glass fronts and accessories to be ordered separatelyØ 5 mm countersunk Varianta screws to be ordered separately
Supplied with
1 x Mounting bracket for cabinet1 x Screw-on bracket for flap1 x Hex key, SW10, plastic1 Set of installation instructions
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
