Article details
Closure directions can be altered by re-positioning the cam, but always moving in the same direction*:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or HClosure travel: 90º locking cam (reversible), 180º key
Closure travel180°
Colour/finishNickel plated, Nickel plated polished
Area of application
For cylinder cores that are inserted from the front on site
Suitable for
With straight locking cam
Cylinder shape
prepared for round cylinder
Version
With straight cam
Material
Zinc alloy
For glass thickness
4 – 10 mm
Installation
Left hand
with key
No
Order reference
Please order counterpiece for 2-leaf sliding doors separately.
Supplied with

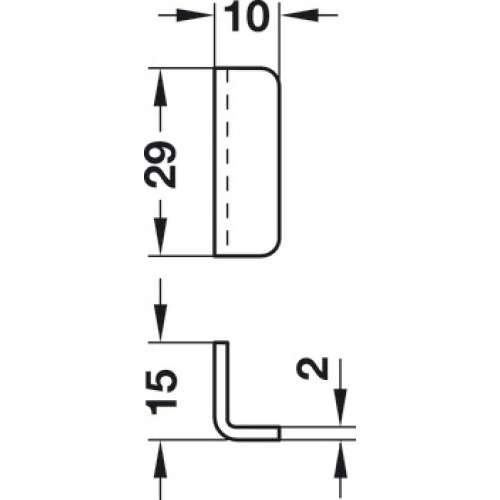

1 Locking cam1 Mounting nut1 Angled steel striking plate1 Clamping plate1 Clamping plastic rosette
Additional information attributes
The locks can be operated by turning the protective cap with a screwdriver or coin, before the cylinder cores are installed
