Article details

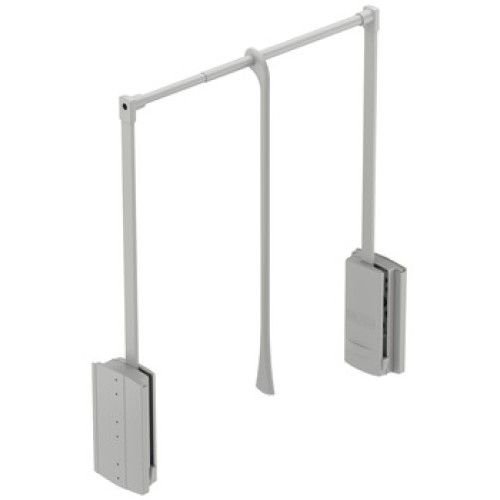

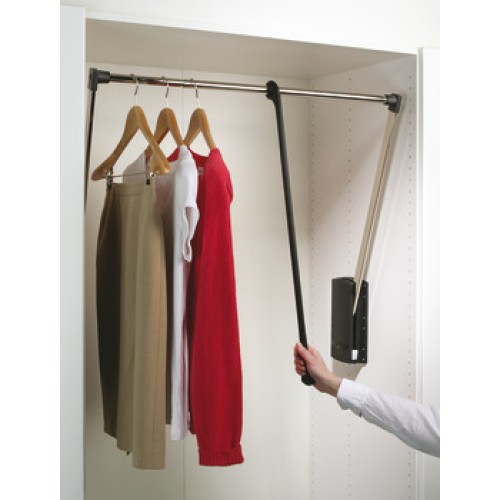

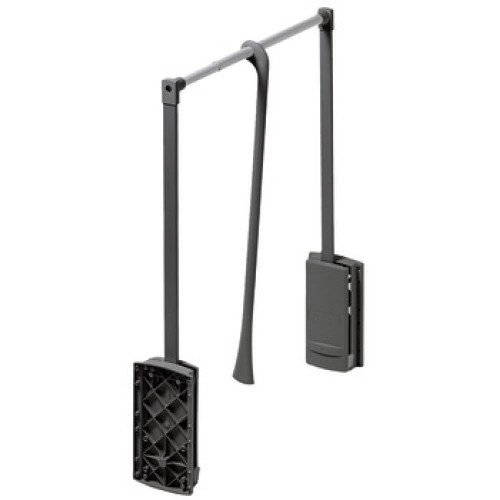

Operated by pull rod - slides along railØ 22 mm hanging rail - adjustable for different wardrobe widthsMinimum load required 1.6 kg, maximum load capacity 10 kgScrew fixing to side panels - fixing materials includedPlease note: All fixings must be usedImportant: Tilting device should only be used if fitting installed to rear of the cabinet

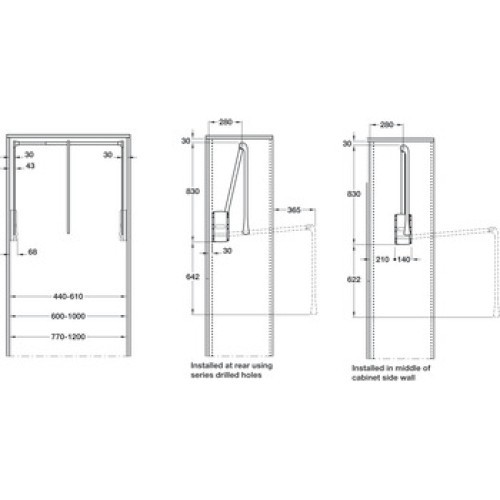

Housing width - 68 mmHousing depth - 140 mm
Material
SteelPlastic
Min. installation height
880 mm
Installation
Screw fixing
Installation reference
Only use tilting device if the wardrobe lift is fitted in the rear row of series drilled holes.
Order reference
When the wardrobe lift is being used in the Versatile system, the support must also be ordered.When used in the frame construction, 2 pairs of adapter plates must be ordered additionally.
Supplied with
Fixings and tilting device
