Article details
Bayonet (tool-less) connection of the shaft into top section prevents shaft from coming out of the top section when tilted, especially on high cabinets
DriveHexagon socket SW8
Adjustment facilityHeight adjustment: -10 – 18 mm
Area of application
Can be adjusted from above through hole in cabinet floor with SW8 allen key
Material
Plastic
Colour/finish
Black
Load bearing capacity
150 kg
Load bearing capacity information
Load bearing capacity per foot
Installation reference
Foot can be adjusted without special tools, even under load
Order reference
Order Hospa Ø 4.5 countersunk screws separately
Supplied with

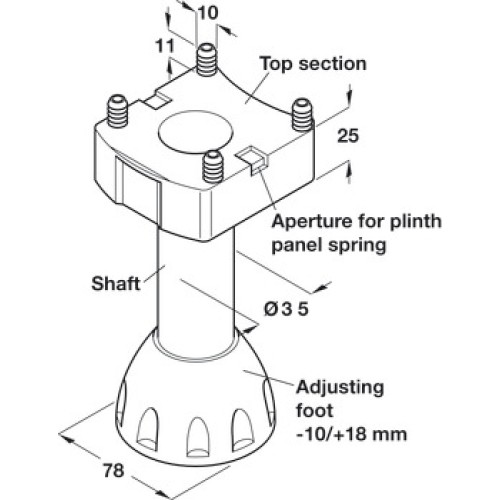

Rectangular top section, shaft and foot
Additional information attributes
Height adjustment possible without special tools
