Article details
Number of doors per system max.
1 to 2
For glass type
Tempered safety glass, Laminated glass
Note on door width
40/50 kg: ≥500 mm120 kg without soft and self closing mechanism: ≥530 mm80/120 kg with soft and self closing mechanism: ≥630 mm
Häfele Lifetime Guarantee
10 years
Order reference
Tracks, end caps and brush seals to be ordered separately
Supplied with

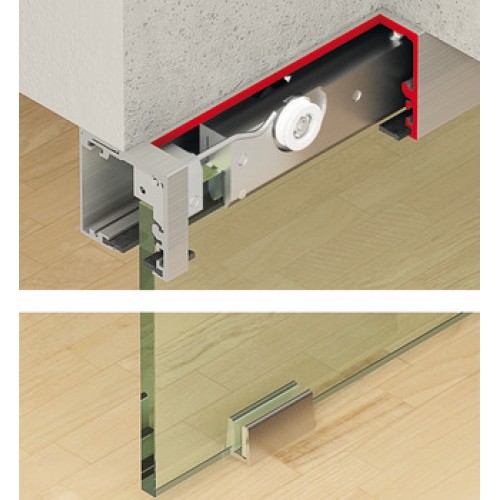

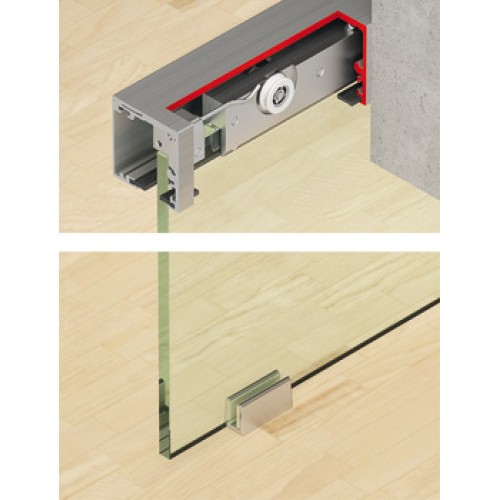

Fitting set includes 1 pair x Classic 120-F running gear, silver coloured anodised aluminium, 2 x Soft and self close mechanism, silver coloured anodised aluminium, 1x Activating pin, silver coloured anodised aluminium, 2 x Track stopper, silver anodised aluminium, 1 x Bottom guide, silver coloured anodised aluminium
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Technical data attributes
Configuration required
Configuration required
Configuration required
Additional information attributes
For laminated glass only in conjunction with glass drilling and threaded end insert.
