Article details
Exceptionally light and silent actionAll parts are corrosion resistantFor low and restricted headroom applications

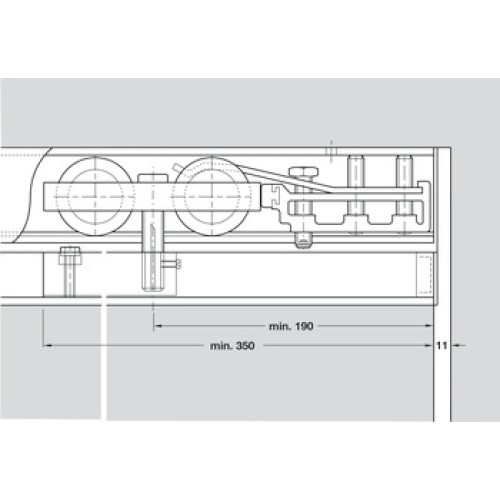

If the sliding door is required to stop at both ends we recommend installing an additional track stopperInstallation drawing reference 17689
Suitable for
Minimum installation height
Number of doors per system max.
1 to 2
Installation
Suspension with recessed support profile
Door processing
With recess
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|3|-|1|0|-|1|3
Order reference
Tracks, accessories and fixings to be ordered separately
Supplied with

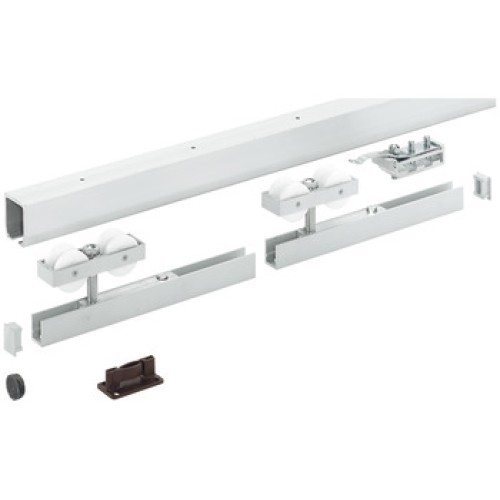

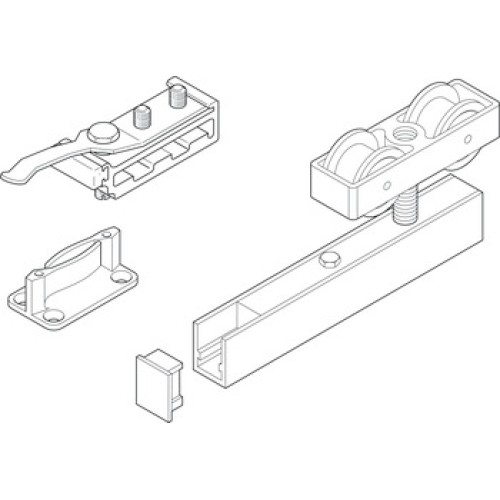

2x Running gears2x Support profiles with suspension carriage, M142x Cover caps for support profile2x Track buffers with retaining spring1x Floor guide with zero clearance
Technical data attributes
Configuration required
Configuration required
Configuration required
