Article details
Exceptionally light and silent actionAll parts are corrosion resistantIdeal for heavier duty cavity applicationsFor low and restricted headroom applications

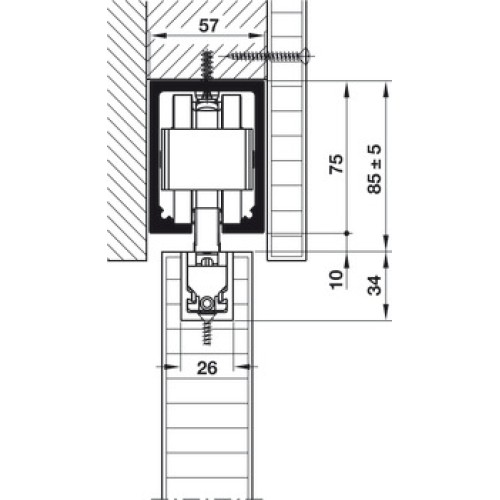

If the sliding door is required to stop at both ends we recommended installing an additional track stopperAlternative light duty guiding with continuous aluminium channel is also availableInstallation drawing reference 17689
Suitable for
Minimum installation height
Number of doors per system max.
1 to 2
For door height
≤4,000 mm
Installation

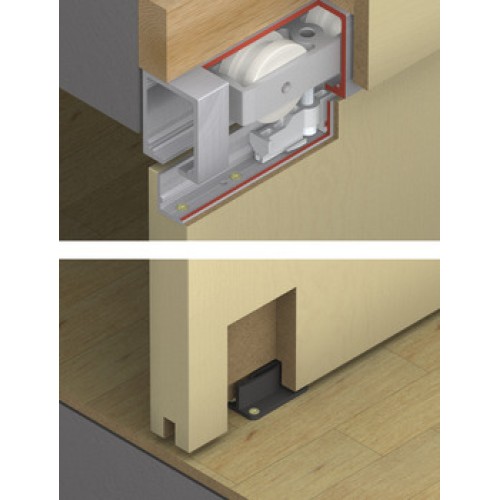

Suspension with recessed support profile
Door processing
With recess
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|3|-|1|0|-|1|3
Order reference
Tracks, accessories and fixings to be ordered separately
Supplied with

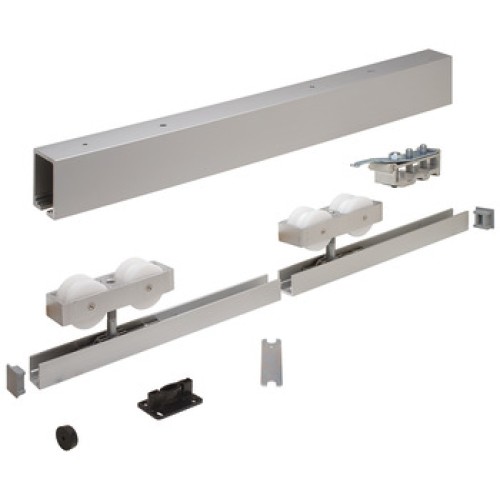

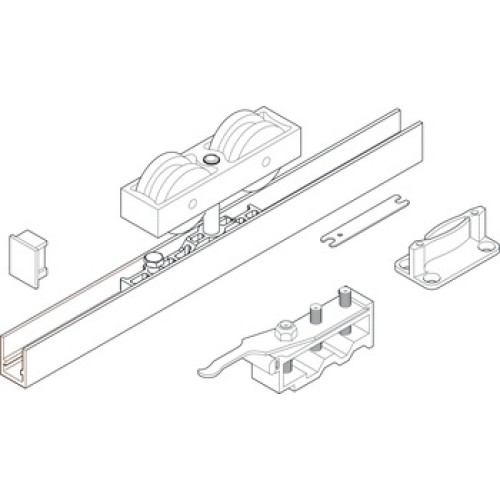

2x Running gears2x Support profiles2x Cover caps2x Track buffers1x Floor guide1x Height adjustment spanner
Technical data attributes
Configuration required
Configuration required
Configuration required
