Article details

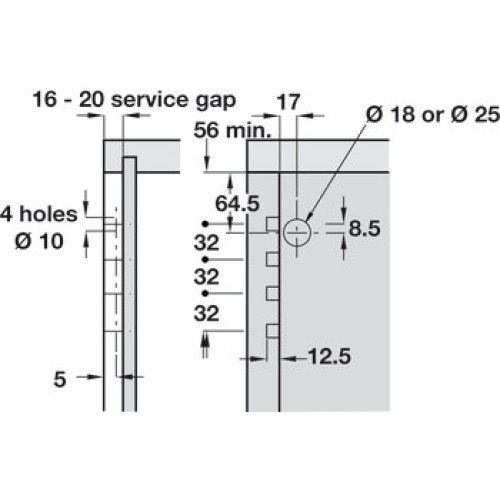

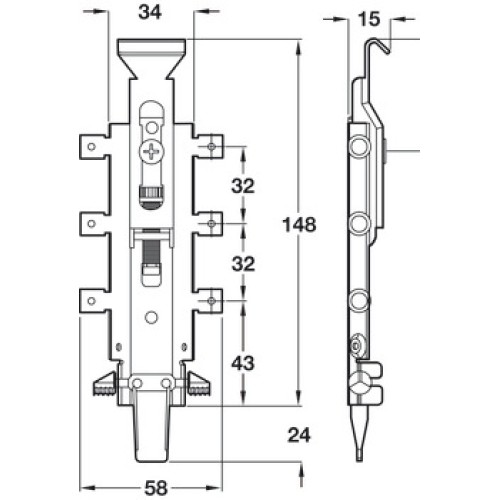

Cabinet hanger concealed behind rear panel, only cover cap visible inside the cabinet
Area of application
For hanging wall units
Load bearing capacity per pair
130 kg
Installation reference

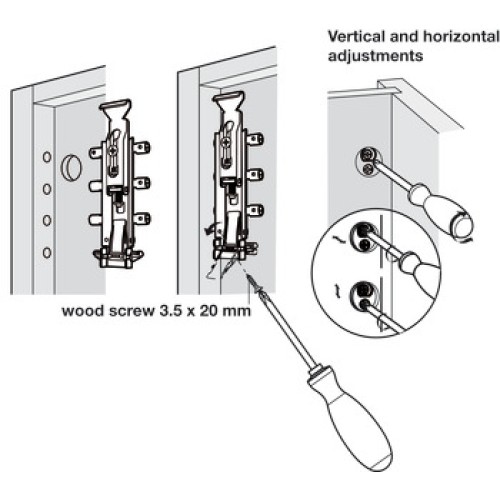

Two-way adjustment:Vertical adjustment: 0-18 mm (Vertical adjustments through front gear cross socket interconnected to the vertical bolt, which reduces the cabinet adjustment effort)Horizontal adjustment: 11-17 mm
Order reference
Wall plates and cover caps must be ordered separately
Additional information attributes
Cabinet hangers should only be adjusted with a hand tool and not a power tool
