Article details
Cabinet hanger concealed behind rear panel, only cover cap visible inside the cabinet
260 kg per pair (Load carrying capacity applies to 2 cabinet hangers bearing an evenly distributed load in accordance with regulation DIN 68840)
Area of application
For hanging wall units
Load bearing capacity
65 kg
Load bearing capacity per pair
130 kg
Material
Steel

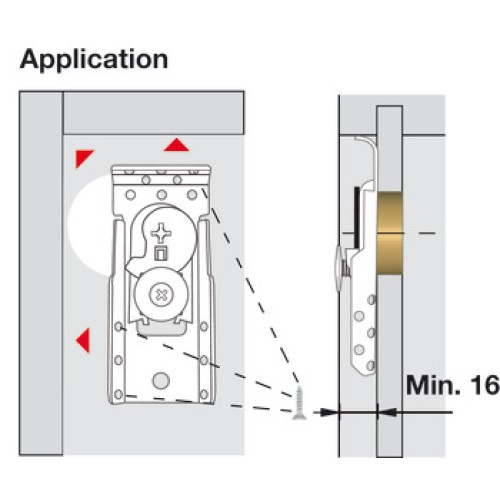

Installation reference
Three-way adjustment:Vertical adjustment: 11 mmHorizontal adjustment: 10 mmLateral adjustment: 12mm
Order reference
Wall plates and cover caps must be ordered separately
Additional information attributes
Cabinet hangers should only be adjusted with a hand tool and not a power tool
