Article details
Anti-glare shieldAsymmetric light distribution allows for a glare-free light source
Light permeability60 – 70 %
Length3000 mm

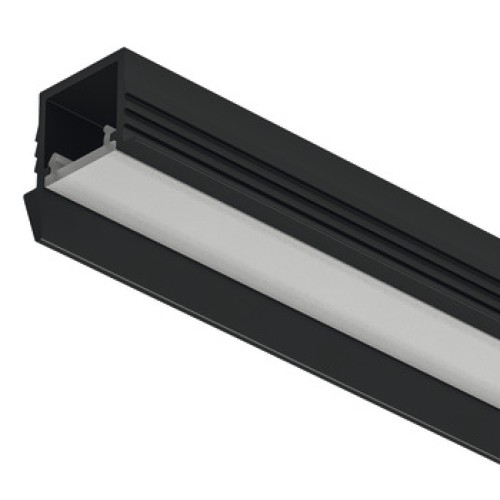

Material
Profile: Aluminium, Diffuser: Polycarbonate

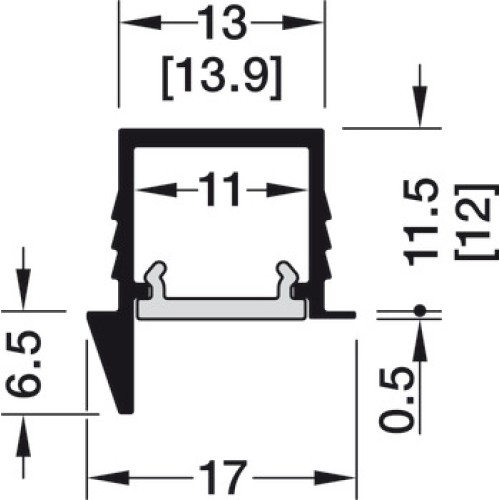

Internal width
11 mm
Diffuser width
11 mm
Routing width
13.9 mm
Routing depth
12 mm
Installation
For recessing
Installation reference
Slide-in 10 mm wide clips before installing the profile
Häfele Lifetime Guarantee
7 years
Order reference
The diffuser creates a uniform light. The LED points are invisible from 120 LEDs/mIf required, please order alternative diffusers in black opal or transparent separatelyOrder end caps separately
Supplied with
1x White opal diffuser, 70 - 80% transmittance
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Additional information attributes
For LED strip lights up to 8 mm wide.The surface that is to be bonded must always be cleaned before bonding to the LED strip lights. It must be completely clean, grease-free and dust-free!DiffusersThe opal white diffuser creates a uniform light without points from 120 LEDs/ m. Points are visible with the black version. If required, please order alternative diffusers in black or transparent separately.
