Article details

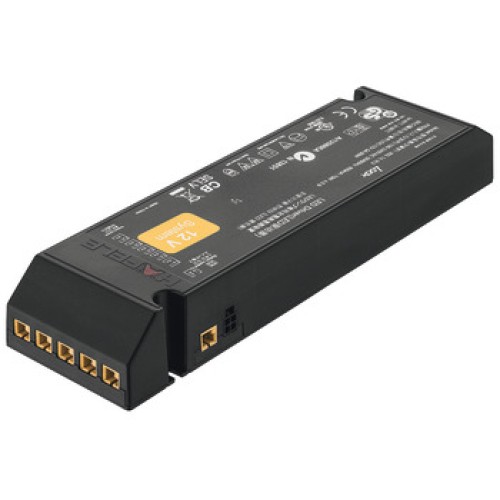

The heart of the Loox systemSuitable for connecting to all of the world’s power systemsOffers an integrated switching function and connections for all of the most popular types of Loox switchesInput voltage: 100-240 V;50-60 HzOutput voltage: DC 12 V6 sockets for Loox/Loox Compatible 12 V lights1 socket for country-specific mains leadAll lights and switches must be connected to the driver before connecting to the mainsLead length from driver to switch max. 6 m
Mains voltage100 – 240 V
Mains frequency50 – 60 Hz
With switching functionYes
Number of switch connections1
Output voltage12 V DC
Power consumption at 230 V no load0.5 W
Area of application
For Loox 12 V lights
Version

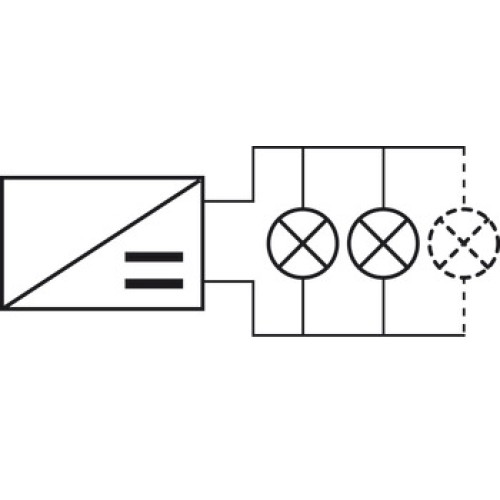

Parallel connection
Installation
For screwing on
Installation reference
Min. distance surrounding 50 mm. Provide for sufficient air supply and circulation. Please note max. ambient temperature. Overvoltage protection must be provided. Provide inspection opening.
Order reference
Order bare ended or country-specific mains lead separatelyOrder Loox and Loox Compatible lights separatelyOrder switch separately
Supplied with
Fixings
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Planning and mounting attributes
Min. distance surrounding 50 mm. Provide for sufficient air supply and circulation. Please note max. ambient temperature. Overvoltage protection must be provided. Provide inspection opening.
Additional information attributes
Provide for sufficient air supply and circulation at the mounting location of the driver
