Article details
Ideal for wardrobes, storage spaces, display cabinets and bathroomsLight opening on the narrow side, LED points not visibleWave and ring shaped installation possible (radius min. 30 mm)Can be split once: Both pieces with separate leadSplash proof for use in wet rooms
Nominal voltage24 V
Wattage/m9.6 W
Max. strip length (visual)3 m
Strip length3 m
Energy efficiency classG
Dimmable
yes
Area of application
Display cabinets, Bend connectors, Storage spaces
Material
Silicone
Colour
white
Silicone tube finish
matt

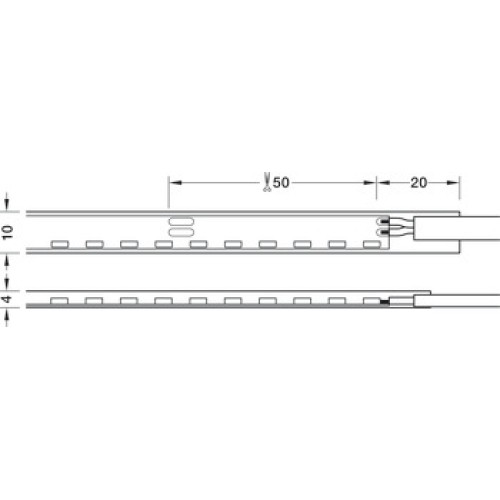

Silicone tube width
10 mm
Silicone hose height
4 mm
Section length
50 mm
Contact surface length
6 mm
Number of LEDs/m
120
Colour rendering index Ra
90
Colour rendering index R9
>50
Routing width
4 mm
Routing depth
10 mm
Min. bending radius
30 mm
Degree of protection
IP44
Installation
For recess mounting
Cable length
200 mm
Order reference
Order Loox5 24 V driver and mains lead separatelyOrder switch separately
Supplied with
With 2x 0.2 m soldered lead 3.5 A/20 AWG (1 each on the left/right of the strip)Fixings
Additional information attributes
Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30 %. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.
