Article details

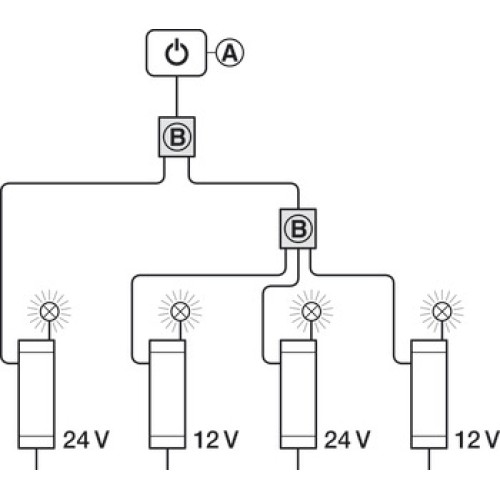

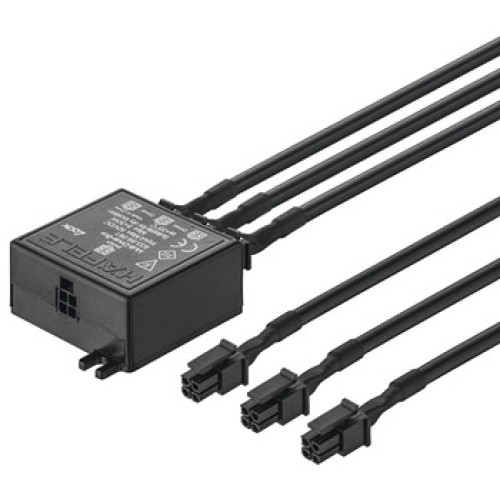

For Loox lights and driversAllows 3 drivers to be controlled by one switch
Max. 3 x 75 W (stand-by power consumption 1.5 W)A maximum of 3 drivers can be controlled by one switchAll Loox switches can be used
Material
Plastic
Colour/finish
Black
Dim. (L x W x H)
50 x 40 x 19 mm
Degree of protection
IP20
Cable length
1000 mm
Plug drill hole Ø
12 mm
Installation reference
Lead length from driver to switch max. 6 mDrill hole ⌀ for plug: 12 mm
Switching capacity
270 W
Häfele Lifetime Guarantee
7 years
Functionality
For controlling up to 3 LED drivers with 1 switchCombination of different systems is possible (12 V, 24 V, 350 mA) Switching capacity 3 x 90 W
Low voltage plug
Loox switch
Order reference
Order Loox lights and drivers separately
Supplied with
3 x 1.0 m switch leads
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Additional information attributes
For controlling up to 3 LED drivers with 1 switchCombination of different systems is possible (12 V, 24 V, 350 mA) Switching capacity 3 x 90 W
Lead length from driver to switch max. 6 mDrill hole ? for plug: 12 mm
