Article details

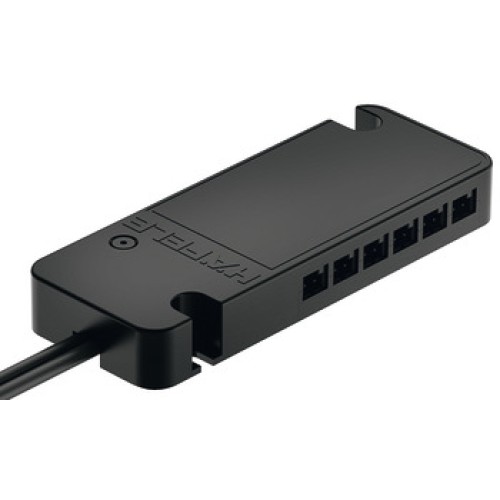

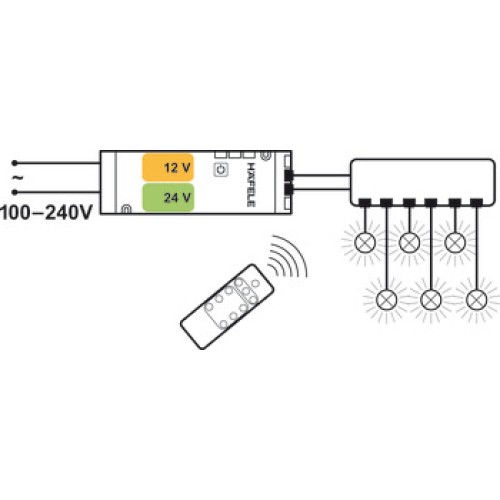

For control of white LED lightsNot suitable for multi white or RGB LED lightsMax. 10 radio receivers can be combined3 lighting scenarios can be storedSeveral radio receivers can be controlled within a radius of 15 mWattage for 12 V version: 60 W (Max. 30 W per socket)Wattage for 24 V version: 90 W (Max. 60 W per socket)6 slots for consumersSoft on/off with dimmer functionConnects to Loox driver via 2 leadsCan be used with the remote switch and bezel which is compatible with Loox 12 V and 24 V systems
Area of application
For controlling white LED lights
Version
6 slots for consumers, voltage supply from driver via 2 leads
Material
Plastic
Colour/finish
black
Dim. (L x W x H)
105 x 40 x 14 mm
Switching function
soft on/off, Dimming (0-100 %, with memory function)
Control channels
6
Number of controls for each installation max.
10
Number of remote controls for each control device max.
10
Distance between controls max.
15 m
Radio frequency
2.4 GHz
Cable length
1000 mm
Installation
Screw fixing
Häfele Lifetime Guarantee
7 years
Low voltage socket
Loox 2-pin 12 V
Order reference
Remote control, lights, drivers and accessories to be ordered separatelyPlease note - If you are using a Loox5 driver, you will require 833.95.752.
Supplied with
1 Premium radio receiver with 2 x 1 m lead
Warranty/guarantee information
This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.For more information go to:Services > Customer Support > Häfele Lifetime Guarantee
Additional information attributes
Max. 10 colour mixers can be freely combined with 1–10 remote controls within a range of 15 m per installation
